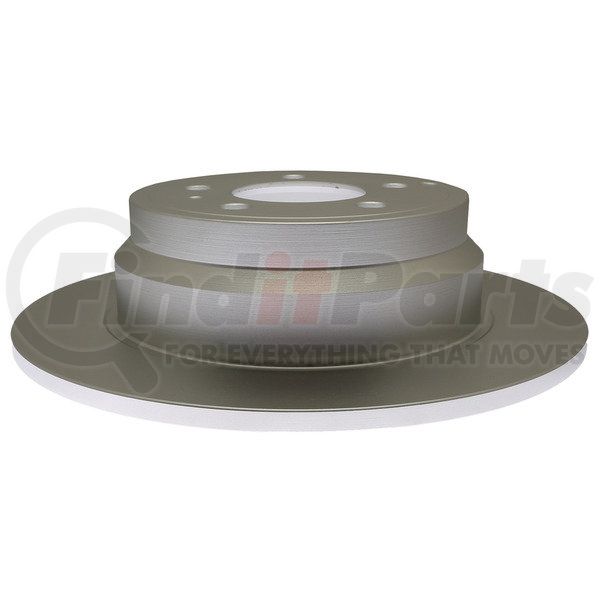

(888) 312-8812 Login SignupCENTRIC 320.39020H Centric GCX Rotor with Full Coating and High Carbon Content
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.39020H Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron & high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.39020H Specifications
Product Attributes
| Weight [cntrc] Lbs | 11.400 |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 5.180 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.400 MM |
| Nominal Thickness | 0.378 IN |
| Nominal Thickness | 9.600 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 72.000 MM |
| Overall Height | 2.835 IN |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 178.000 MM |
| Nominal Drum Diameter | 7.008 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.750 MM |
| Stud/Lug Hole Diameter | 0.581 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590388473 |
CENTRIC 320.39020H Cross References
CENTRIC 320.39020H Fits Vehicles
- Volvo V70 (1998-2000)
- Volvo S70 (1998-2000)
- Volvo C70 (1998-2004)
- Volvo 850 (1994-1997)
