(888) 312-8812 Login SignupCENTRIC 320.67054F Centric GCX Rotor with Full Coating
Tap to view 4 more
$14349
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
CENTRIC 320.67054F Part Description
Manufacturer
Product Description

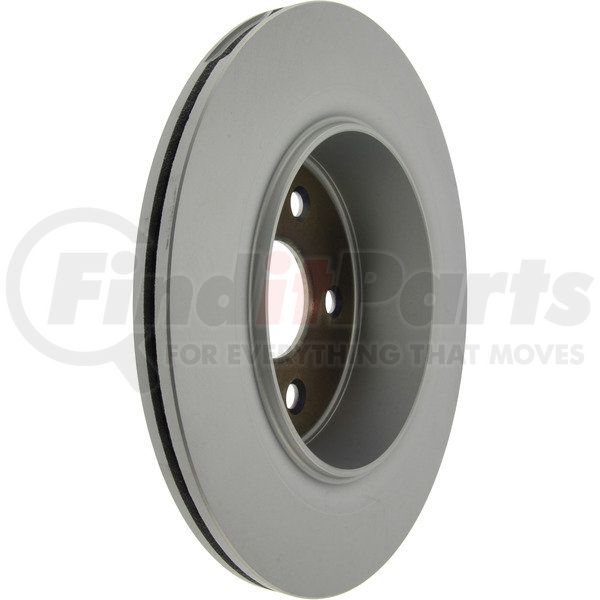

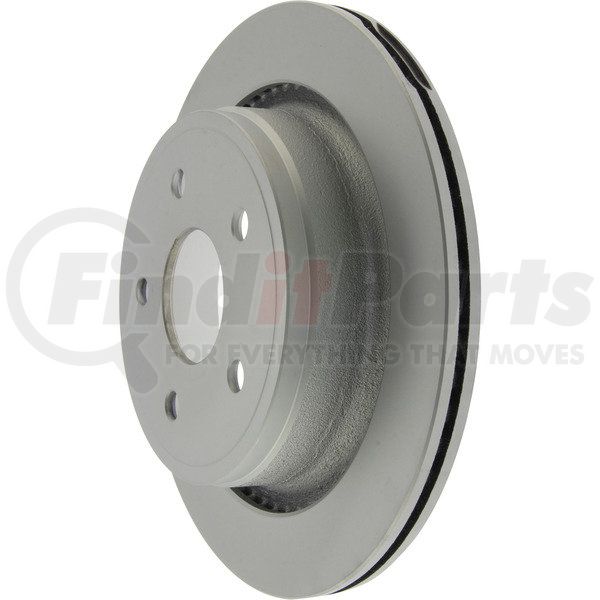

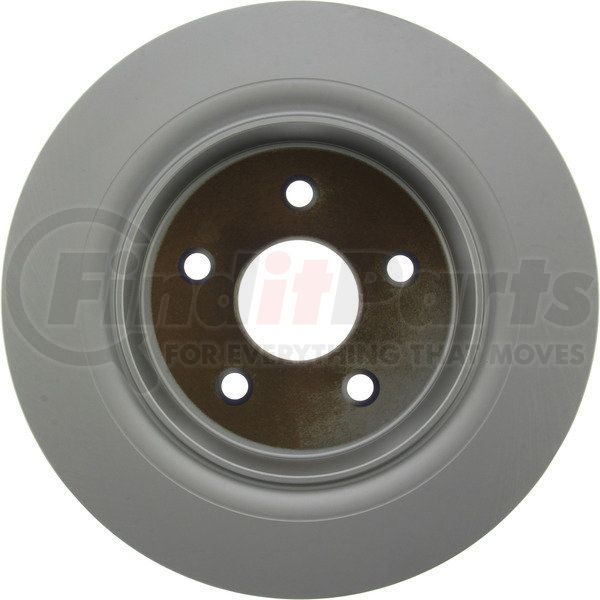

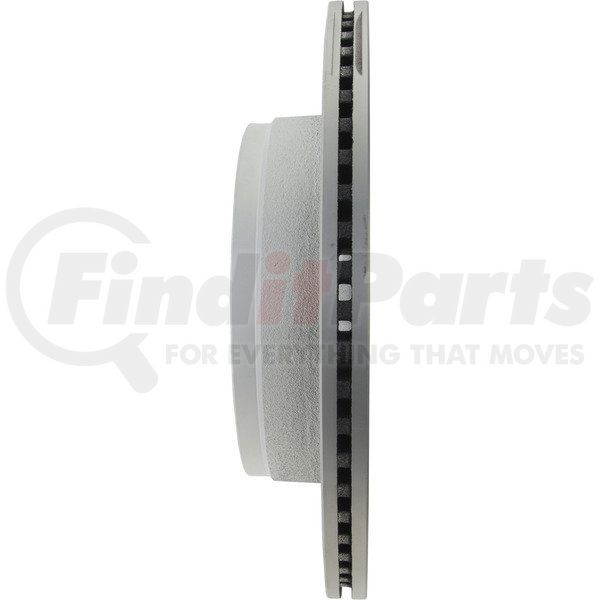

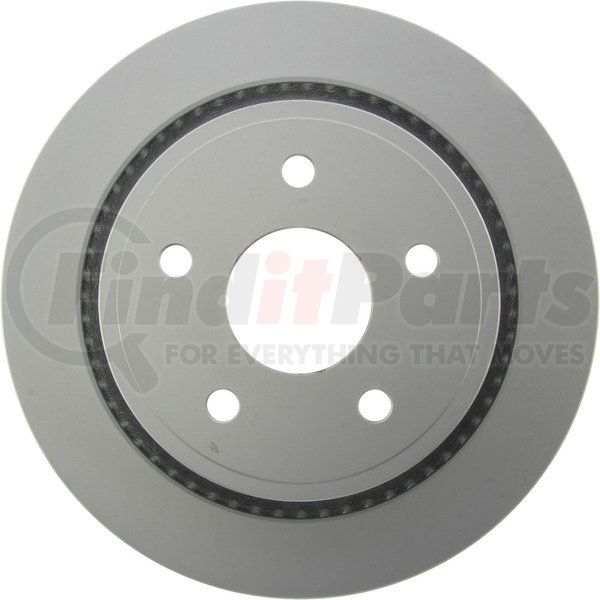

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.67054F Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 207.200 |
| Max Pb Drum Dia [cntrc] In | 8.157 |
| Weight [cntrc] Kgs | 11.110 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 24.500 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 7.992 |
| Hat Id [cntrc] Mm | 203.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 20.400 MM |
| Discard Thickness | 0.803 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 72.000 MM |
| Overall Height | 2.835 IN |
| Outside Diameter | 352.000 MM |
| Outside Diameter | 13.858 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 8.110 IN |
| Nominal Drum Diameter | 206.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 78.500 MM |
| Center Hole Diameter | 3.091 IN |
| Mounting Bolt Hole Circle Diameter | 140.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 17.000 MM |
| Stud/Lug Hole Diameter | 0.669 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393880 |
CENTRIC 320.67054F Cross References
CENTRIC 320.67054F Fits Vehicles
- Ram 1500 Classic (2019-2022)
- Chrysler Aspen (2007-2009)
- Dodge Durango (2004-2009)
- Dodge Dakota (2010, 2012)
- Dodge Ram 1500 (2002-2010)
- Ram 4000 (2016)
- Ram 1500 (2011-2020)
