CENTRIC 320.66059F Part Description
Manufacturer
Product Description

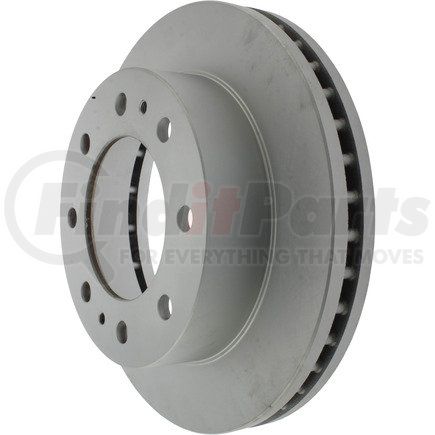

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.66059F Specifications
Product Attributes
| Weight [cntrc] Lbs | 29.650 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 13.480 |
| Misc Holes [cntrc] | 2 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.437 IN |
| Discard Thickness | 36.500 MM |
| Nominal Thickness | 37.800 MM |
| Nominal Thickness | 1.488 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 89.300 MM |
| Overall Height | 3.516 IN |
| Outside Diameter | 324.600 MM |
| Outside Diameter | 12.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.654 IN |
| Center Hole Diameter | 118.200 MM |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.400 MM |
| Stud/Lug Hole Diameter | 0.646 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393521 |
CENTRIC 320.66059F Cross References
CENTRIC 320.66059F Fits Vehicles
- Chevrolet Express 2500 (2021-2022)
- GMC Savana 2500 (2021-2022)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Avalanche 2500 (2002-2004)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 3500 HD (2007-2010)
- GMC Sierra 2500 HD (2001-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Savana 4500 (2009-2019, 2021-2022)
- Chevrolet Express 4500 (2009-2019, 2021-2022)
- GMC Savana 3500 (2003-2019, 2021-2022)
- Chevrolet Silverado 3500 (2001-2007)
- Chevrolet Silverado 2500 HD (2001-2010)
- Chevrolet Express 3500 (2003-2022)
