CENTRIC 320.50000F Part Description
Manufacturer
Product Description

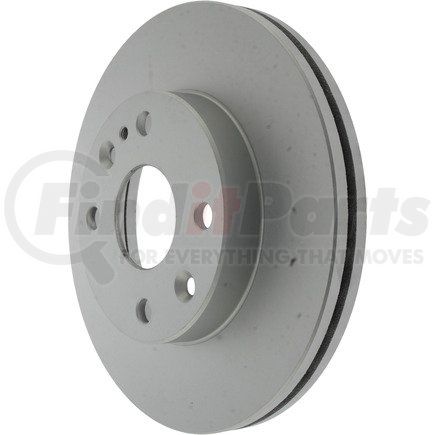

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.50000F Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 10.000 |
| Weight [cntrc] Kgs | 4.550 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 45.000 MM |
| Overall Height | 1.772 IN |
| Outside Diameter | 9.240 IN |
| Outside Diameter | 234.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 55.000 MM |
| Center Hole Diameter | 2.165 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590390490 |
CENTRIC 320.50000F Cross References
CENTRIC 320.50000F Fits Vehicles
- Ford Aspire (1994-1997)
- Kia Rio (2001-2002)
