(888) 312-8812 Login SignupDELPHI TC5695 Ball Joint
Tap to view 5 more
$5799
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
DELPHI TC5695 Part Description
Manufacturer
Product Description

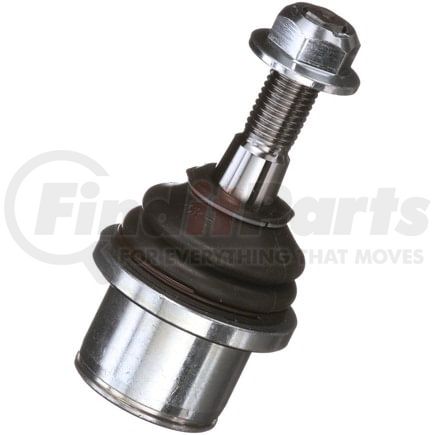

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5695 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.500 IN |
| Maximum Outside Diameter | 63.50 MM |
| Color | Silver |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 63.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 5.118 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.181 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.846 IN |
| Stud Tapered End 1 Diameter | 21.5 MM |
| Stud Thread Pitch | 2 MM |
| Length | 130.00 MM |
| Length | 5.120 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 130.00 MM |
| Stud Thread Length | 30 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604311820 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5695 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | BJ86245, BJ86245XL |
| Ford | AL3Z 3050-A, BL3Z 3050-B, MCF2256 |
| MEVOTECH | MS40529, TXMS40529 |
| MOOG Chassis Products | K500193 |
| N/A | AL3Z 3079-B, AL3Z 3078-B, TXMS40529, BJ86245, MS40529, BJ86245XL |
DELPHI TC5695 Fits Vehicles
- Ford F-150 (2010-2014)
