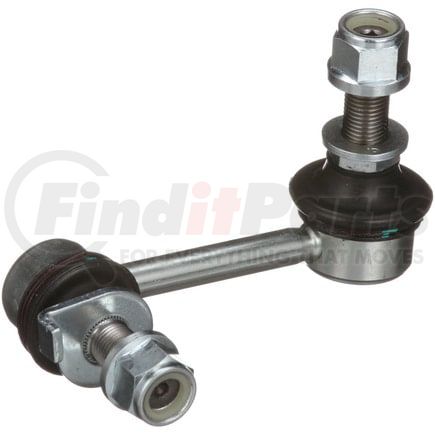

(888) 312-8812 Login SignupDELPHI TC5465 Suspension Stabilizer Bar Link
Tap to view 5 more
$2799
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
DELPHI TC5465 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5465 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left |
| Material | Steel |
| Length | 5.710 IN |
| Length | 145.00 MM |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | 1.25 |
| Width | 3.54 IN |
| Width | 90 MM |
| Washers Included | Yes |
| Height | 3.15 IN |
| Height | 80.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 18.00 MM |
| Bolt Head Diameter | 0.710 IN |
| Weight | 0.15 lb |
| Bolt Length | 28.00 MM |
| Bolt Length | 1.100 IN |
| Bolt Thread Diameter | 0.470 IN |
| Bolt Thread Diameter | 12.00 MM |
| Locking Nuts Included | Yes |
| Color | Black |
| End 1 Type | Male |
| End 2 Type | Male |
| Pipe Diameter | 10.00 MM |
| Sleeve Inside Diameter | 17.70 MM |
| Sleeve Length | 31.50 MM |
| Nuts Included | Yes |
| Boot Material | Rubber |
| Bar Diameter | 10.00 MM |
| Bearing Material | Plastic |
| Wrench Size | 6 MM |
| Distance Between Mounting Holes | 90.00 MM |
| Hardware Included | Yes |
| Pipe Diameter | 0.39 IN |
| Sleeve Inside Diameter | 0.69 IN |
| Sleeve Length | 1.24 IN |
| Bar Diameter | 0.39 IN |
| Distance Between Mounting Holes | 3.54 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604300534 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5465 Cross References
DELPHI TC5465 Fits Vehicles
- INFINITI G35 (2003-2007)
- Nissan 350Z (2003-2009)
