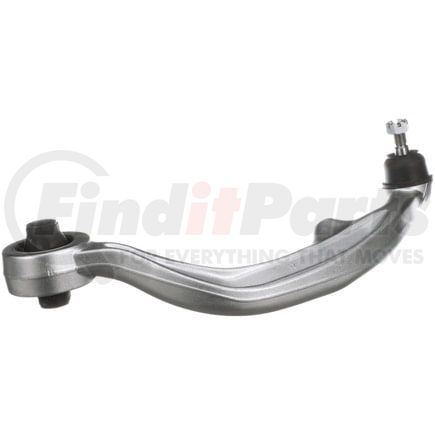

(888) 312-8812 Login SignupDELPHI TC5364 Control Arm and Ball Joint Assembly
Tap to view 20 more
$7249
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
DELPHI TC5364 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5364 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 6.102 IN |
| Control Arm Maximum Width | 155.00 MM |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 2.638 IN |
| Ball Joint Stud Length | 67.00 MM |
| Control Arm Maximum Length | 16.929 IN |
| Control Arm Maximum Length | 430.00 MM |
| Bushing Material | Rubber |
| Control Arm Color | Gray |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604296394 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5364 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | 521-602, CB61034, CB61034PR |
| Datsun/Nissan | 54468-AC70F |
| MEVOTECH | CMS30166, CMS301003, CMS30198 |
| N/A | 54468-CD00C, 54468-CD001, 102-7857, CK621372, CMS30166, CB61033, 52-1601, GS301003, GS90522, CMS301003, 54469-CD002, CB61033PR, 102-6617, RK621372, RK621341, 623.42004, CMS30199 |
| TRW | JTC2570, JTC2584 |
DELPHI TC5364 Fits Vehicles
- INFINITI G35 (2003-2007)
- Nissan 350Z (2003-2009)
