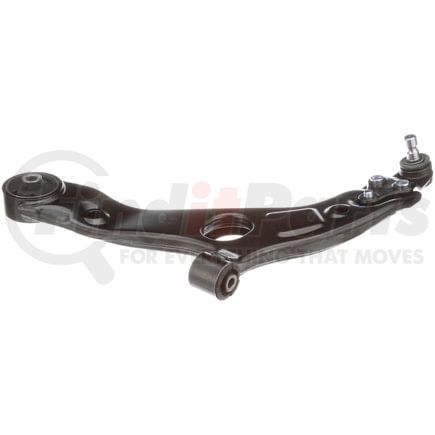

(888) 312-8812 Login SignupDELPHI TC5211 Control Arm and Ball Joint Assembly
Tap to view 20 more
$19949
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Mar 6
DELPHI TC5211 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5211 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 17.323 IN |
| Control Arm Maximum Width | 440.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.71 IN |
| Ball Joint Thread Diameter | 18.0 MM |
| Ball Joint Stud Length | 2.205 IN |
| Ball Joint Stud Length | 56.00 MM |
| Control Arm Maximum Length | 18.110 IN |
| Control Arm Maximum Length | 460.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.472 IN |
| Mounting Hole Diameter | 12.00 MM |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604296561 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5211 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7351 |
| DORMAN | CB60343, CB60343PR |
| Dorman | 522-815 |
| Hyundai | 54500-3S200 |
| Kia | 54500-3S200 |
| MEVOTECH | CMS901153 |
| MOOG Chassis Products | RK622362 |
| N/A | 54500-3S100, 54500-2T030, CMS901153, CB60343, GS901153, CK622362 |
DELPHI TC5211 Fits Vehicles
- Hyundai Azera (2013-2014)
- Kia Cadenza (2014-2016)
- Kia Optima (2011-2015)
- Hyundai Sonata (2011-2014)
