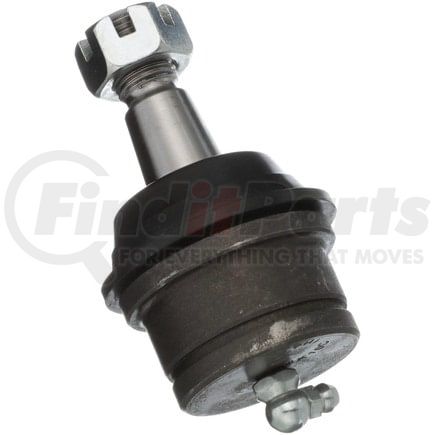

DELPHI TC2581 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2581 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.688 IN |
| Stud Thread Diameter | 17.5 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 5.209 IN |
| Height | 132.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.071 IN |
| Stud Thread Length | 27.2 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.89 IN |
| Stud Tapered End 2 Diameter | 22.6 MM |
| Stud Tapered End 1 Diameter | 0.748 IN |
| Stud Tapered End 1 Diameter | 19 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Pitch | 0.7 MM |
| Length | 64.00 MM |
| Length | 2.520 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604302842 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2581 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B8547, B8547PR |
| Ford | FO9Z-3078-A, FO9Z-3079-A |
| MOOG Chassis Products | K8547 |
| Mevotech | MK8547 |
| N/A | GK8547, B8547, B8547PR |
| TRW | JBJ873 |
DELPHI TC2581 Fits Vehicles
- Ford Aerostar (1990-1997)
