(888) 312-8812 Login SignupHELLA 009149121 Air Mass Sensor 8ET
$14749
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 5
HELLA 009149121 Part Description
Manufacturer
Product Description

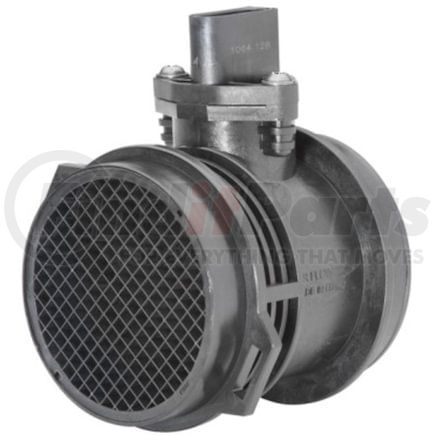

HELLA Mass Air Flow Sensor 009149121
Features & Benefits
- In OEM quality for a precise fit in the vehicle
- Improves fuel efficiency and engine response by providing high air-mass measuring precision with hot-film sensor technology.
- Ensures accurate air-to-fuel ratio adjustment, supporting stable combustion efficiency and reduced engine emissions in varying conditions.
- Delivers long service life with robust sensor construction, designed for consistent performance in diverse environmental conditions.
- Enhances engine management with a broad dynamic measurement range that supports precise exhaust gas recirculation and accurate flow measurement.
- Offers universal compatibility, ensuring seamless integration with most modern vehicles for reliable sensor installation and operation.
HELLA 009149121 Specifications
Product Attributes
| Mounting Type | Pipe-Neck |
| SVHC | 7439-92-1; Lead |
| Number of Pins | 5 |
| Suction Pipe Connector Diameter [mm] | 84 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Connector Quantity | 1 |
| Induction Pipe Connector Diameter [mm] | 84 |
| Induction Pipe Connector Diameter [in] | 3.31 |
| Suction pipe connector diameter [in] | 3.31 |
| California Proposition 65 Required | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Voltage | 12.00 2H |
| Color | Black |
| Sensor Type | Hot-Film Sensor |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.31 IN |
| Inlet Connection Diameter | 84.00 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Shape | D Shape |
| Gasket Or Seal Included | No |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Pipe-Neck |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300394511 |
HELLA 009149121 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 280 217 515, 0 280 217 516, 0 280 218 082 |
| Delphi | AF1015812B1, AF1030512B1 |
| Evobus | 112 094 01 48, A1120940048, A1120940148 |
| Magneti Marelli | 213719608019 |
| Mercedes-Benz | 112 094 00 48 |
| N/A | FDM683, QM895, QM899, QM1094, 90977, 96835, 0891035, 558075A, 10.1064, 28339, 112 094 00 48, V30-72-0001-1, V30-72-0014, V30-72-0001, V30-72-0017, 86071, 86166, 70640206, 2508960, 138960, A2C59513371 |
| SMP | 19705-M, 19812-M, EAM028-M, EAM113-M, LMF243, MAFS052-M, MAFS453-M |
| STANDARD IGNITION | MAS0161 |
| Valeo | 253707 |
HELLA 009149121 Fits Vehicles
- Mercedes-Benz S350 (2006)
- Mercedes-Benz SLK320 (2001-2004)
- Mercedes-Benz SLK32 AMG (2002-2004)
- Mercedes-Benz ML350 (2003-2005)
- Mercedes-Benz ML320 (1998-2003)
- Mercedes-Benz E320 (1998-2003, 2005)
- Mercedes-Benz CLK320 (1998-2005)
- Mercedes-Benz C320 (2001-2005)
- Mercedes-Benz C32 AMG (2002-2004)
- Mercedes-Benz C280 (1998-2000)
- Mercedes-Benz C240 (2001-2005)
