(888) 312-8812 Login SignupDORMAN BJ91415 Suspension Ball Joint
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

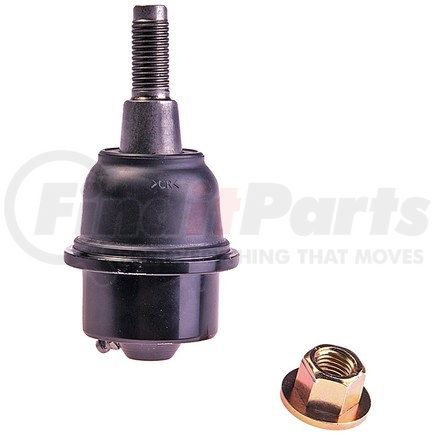

DORMAN BJ91415 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Chevrolet 2019-11, GMC 2019-11
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ91415 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Non |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Adjustable | Non |
| Greaseable | Oui |
| Stud Type | Cónico |
| Mounting Type | A presión |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Metal |
| Bolts/Studs Included | Oui |
| Housing Press Fit Diameter | 53.1 mm |
| Package Contents | 1 Zerk Fitting |
| Thread Pitch | 2 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 rótula, 1 tuerca, 1 alemite |
| Diámetro del acoplado a presión de la caja | 53.1 mm mm |
| Housing Press Fit Diameter | 53.1 mm MM |
| Pernos/argollas incluidos | Sí |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 16 mm MM |
| Nuts Included | Oui |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 16mm MM |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00669810020099 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ91415 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D10118, 46D10118A |
| ADVANTAGE | 46D10118A |
| Centric Parts | 610.66059 |
| Delphi | TC5480 |
| General Motors | 19256656, 84735903 |
| MEVOTECH | MK500007, TXK500007 |
| MOOG | K500232 |
| MOOG Chassis Products | K500232, 614043 |
| Mevotech Original Grade | GS50553 |
| Mevotech Supreme | MS50553 |
| Mevotech TTX | TXMS50553 |
| QUICK STEER | K500232 |
| SUSPENSIA | X07BJ7016 |
| SYD | 1003016 |
| TRW | JBJ1124 |
| XRF | K500232 |
| XRF Chassis | K500232 |
DORMAN BJ91415 Fits Vehicles
- GMC Sierra (2017-2018)
- Chevrolet Silverado 3500 HD (2011-2024)
- GMC Sierra 3500 HD (2011-2024)
- GMC Sierra 2500 HD (2011-2024)
- Chevrolet Silverado 3500 (2011-2013, 2015-2018)
- Chevrolet Silverado 2500 (2011-2018)
- Chevrolet Silverado 2500 HD (2011-2024)
