DORMAN BJ63065 Part Description
Manufacturer
Product Description

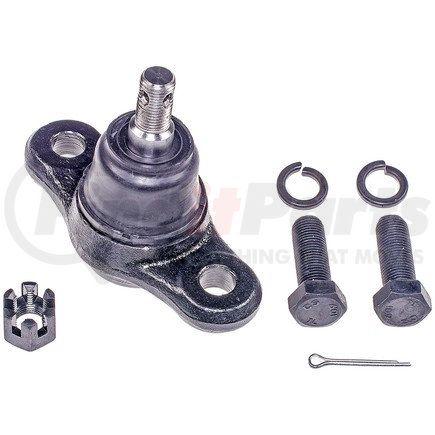

Suspension Ball Joint
Application Summary
Hyundai 2012-07, Kia 2013-06
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ63065 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 2 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cono |
| Mounting Type | Con perno |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 2 Lock Washers |
| Thread Pitch | M1.25 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 2 arandelas de seguridad |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | M1.25 mm |
| Stud Thread Pitch | 1.5 mm MM |
| Nuts Included | Oui |
| Stud Thread Diameter | 12 mm MM |
| Paso de rosca | M1.25 MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295052435 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ63065 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2387 |
| Beck/Arnley | 101-6051 |
| Centric Parts | 610.51014 |
| DORMAN | 535-602 |
| Delphi | TC1990 |
| Hyundai | 517602G000 |
| Kia | 517602G000, 517602H000 |
| MEVOTECH | MS90503 |
| MOOG | K500074 |
| MOOG Chassis Products | K500074, K500046 |
| Mcquay-Norris | FA2316 |
| Mevotech Original Grade | GK90506, GS90503, GS90506 |
| Mevotech Supreme | MS90503, MS90506 |
| QUICK STEER | K500074 |
| QuickSteer | K500074 |
| SUSPENSIA | X18BJ1782 |
| TRW | JBJ1075 |
| XRF | K500074 |
| XRF Chassis | K500074 |
DORMAN BJ63065 Fits Vehicles
- Kia Forte Koup (2010-2013)
- Kia Forte5 (2012-2013)
- Kia Optima (2006-2010)
- Kia Rondo (2007-2012)
- Kia Forte (2010-2013)
- Hyundai Elantra (2007-2012)
- Kia Magentis (2006-2010)
