CENTRIC 126.62160 Part Description
Manufacturer
Product Description

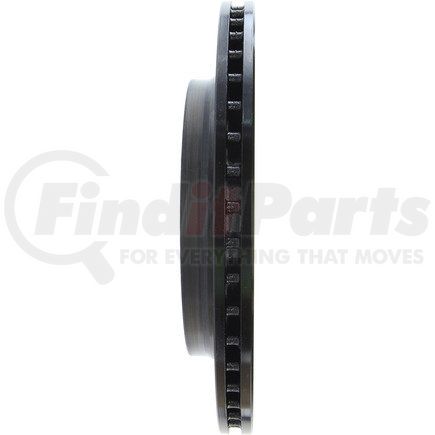

Centric Premium OE Style Slotted Brake Rotor
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Premium rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 126.62160 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.700 |
| Misc Holes [cntrc] | 5 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] Mm | 196.800 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 7.748 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 16.950 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| OEM Vane Count [cntrc] | 47 |
| Discard Thickness | 21.000 MM |
| Discard Thickness | 0.827 IN |
| Nominal Thickness | 23.000 MM |
| Nominal Thickness | 0.906 IN |
| Hat Finish | Coated |
| Overall Height | 1.898 IN |
| Overall Height | 48.200 MM |
| Outside Diameter | 315.000 MM |
| Outside Diameter | 12.402 IN |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 67.500 MM |
| Center Hole Diameter | 2.657 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.630 IN |
| Stud/Lug Hole Diameter | 16.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590089776 |
CENTRIC 126.62160 Cross References
CENTRIC 126.62160 Fits Vehicles
- Cadillac CTS (2015-2016)
