(888) 312-8812 Login SignupGOODYEAR 22434 Accessory Drive Belt - V-Belt, 43.4 in. Effective Length, EPDM
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GOODYEAR 22434 Part Description
Manufacturer
Technical Specifications:
| Profile Series | 22 |
| V-belt Profile | 15A |
| Effective Length | 43.4 in |
| Outside Circumference | 43.97 in |
| Cord Material | Polyester |
| Top Width | 0.669 in |
| Thickness | 0.413 in |
| Material | EPDM |
| Rib Angle | 36⁰ |
| Item Weight | 0.44 lbs |
| UPC | 195199101406 |
| Harmonized Tariff Code | 4010323000 |
Application Summary:
- 1934-1934 Chevrolet Standard
- 1999-2002 Chevrolet T6500
- 1999-2002 Chevrolet T7500
- 1995-2004 Chevrolet W5500 Tiltmaster
- 1995-1996 Chevrolet W6500 Tiltmaster
- 1995-1996 Chevrolet W7500 Tiltmaster
- 1984-1989 Ford L9000
- 1987-1989 Ford LL9000
- 1984-1989 Ford LN9000
- 1984-1989 Ford LNT9000
- 1984-1989 Ford LT9000
- 1984-1989 Ford LTL9000
- 1984-1989 Ford LTS9000
- 1947-1953 GMC 100-22
- 1953-1953 GMC 100-24
- 1952-1953 GMC 102-22
- 1951-1953 GMC 150
- 1947-1953 GMC 150-22
- 1953-1953 GMC 150-24
- 1951-1953 GMC 250
- 1951-1953 GMC 250-22
- 1953-1953 GMC 250-24
- 1952-1953 GMC 253-22
- 1942-1947 GMC CC100
- 1945-1947 GMC CC101
- 1945-1947 GMC CC102
- 1942-1947 GMC CC150
- 1942-1947 GMC CC250
- 1942-1947 GMC CC260
- 1942-1942 GMC CC300
- 1942-1947 GMC CCV100
- 1942-1947 GMC CCX250
- 1942-1947 GMC EC100
- 1945-1947 GMC EC101
- 1945-1947 GMC EC102
- 1942-1947 GMC EC150
- 1947-1947 GMC EC152
- 1947-1947 GMC EC250
- 1947-1947 GMC EC251
- 1947-1947 GMC EC252
- 1947-1947 GMC EC280
- 1947-1947 GMC EC282
- 1947-1947 GMC EC283
- 1947-1949 GMC EF241
- 1948-1949 GMC EF242
- 1947-1952 GMC FC100
- 1952-1952 GMC FC100-22
- 1947-1950 GMC FC101
- 1947-1950 GMC FC102
- 1947-1952 GMC FC150
- 1947-1950 GMC FC152
- 1947-1950 GMC FC250
- 1947-1950 GMC FC251
- 1947-1950 GMC FC252
- 1947-1950 GMC FC253
- 1947-1950 GMC FC280
- 1947-1950 GMC FC281
- 1947-1947 GMC FC283
- 1949-1950 GMC FP152
- 1951-1953 GMC P150-22
- 1950-1951 GMC P152
- 1951-1951 GMC P252
- 1951-1951 GMC P253
- 1953-1953 GMC PM150
- 1952-1953 GMC PM150-22
- 1952-1953 GMC PM150-24
- 1952-1952 GMC PM152
- 1952-1953 GMC PM152-22
- 1952-1953 GMC PM252
- 1952-1953 GMC PM253
- 1999-2002 GMC T6500
- 1999-2002 GMC T7500
- 1995-2004 GMC W5500 Forward
- 1995-1996 GMC W6500 Forward
- 1995-1996 GMC W7500 Forward
- 1996-2004 Isuzu FRR
- 1996-2002 Isuzu FSR
- 1996-2003 Isuzu FTR
- 1996-2003 Isuzu FVR
- 1957-1966 Jeep FC150
- 1957-1966 Jeep FC170
- 1973-1974 Mazda RX-2
- 1973-1973 Mazda RX-3
- 1979-1987 Toyota Land Cruiser

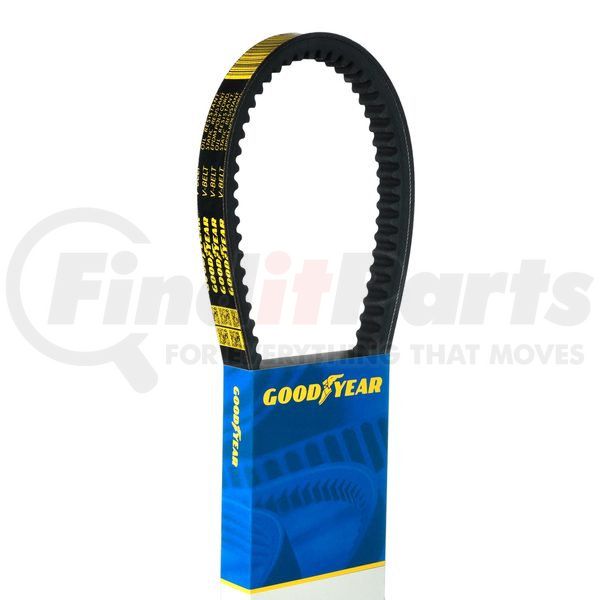

Goodyear Accessory Drive Belt
Restore your belt drive system to optimum levels with the Goodyear accessory drive belt. Each belt is developed to meet or exceed OE requirements for longer life and quieter operation.

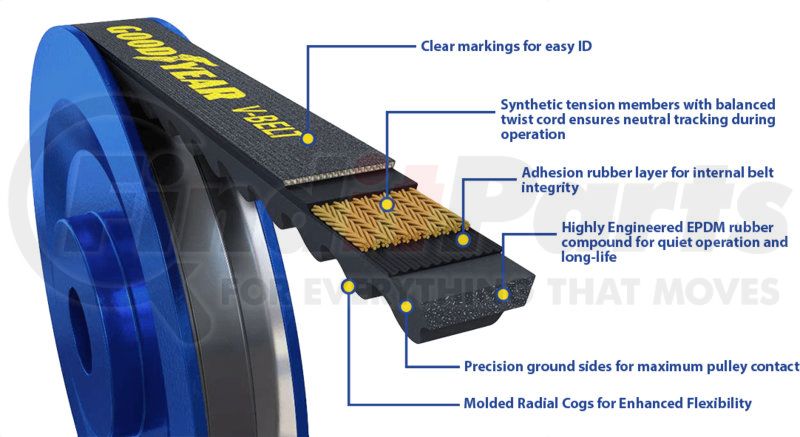

Features & Benefits
- Made of durable EPDM rubber with excellent tensile strength and chemical resistance
- High-strength tensile cords prevent tension decay and allows for easier maintenance
- Proprietary rubber formulation makes it run quieter than conventional V-belts
- Radial cog design eliminates stress risers that can cause cracking
- Precision ground sides ensure optimum contact with the pulleys
GOODYEAR 22434 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL/CONTITECH | 22440 |
| DAYCO | 22435 |
| GATES | TR22434, TR20426 |
| OEM PART NUMBER | D3HA-8A615-MA, 90916-02954-71, 8-94395-172-0, D3HA-8620-HA, 8-94399-199-0, 2-94237-010-0, D6NN-3N817-A, 99343-11095, 04120-01719, 99323-01091, 513671-0440, 359021-C91, 02-7007302, 3857B1-430, 157141H1, 700220A7, V1091026, AD017469, ME900742, MD017469, 5124293, 8002996, 9116511, 15D7918, 3040356, 9005571, GT22437, MD34-41, B22440A, B24433A, B24435A, B24437A, B24441A, B24443A, GT22441, GTFL749, 178571, 700220, 178654, 178435, 947289, 680331, 695788, 545874, BH102 |
GOODYEAR 22434 Customer Reviews
No reviews yet
Be the first to review this product!
GOODYEAR 22434 Manufacturer Information
When it comes to rubber tires, few brands are held in such high esteem as Goodyear®. Founded in 1898, the Goodyear Tire and Rubber Company is one of the oldest and largest tire companies in the world. In its more than a century in business, Goodyear has been a dominant force in the industry, manufacturing tires and related rubber products for a wide range of applications, including passenger cars, light and commercial trucks, buses, motorcycles, racing cars, airplanes, farm and mining equipment, and so much more. Today, the company remains one of the top four tire manufacturers with 46 facilities across 21 countries worldwide.
