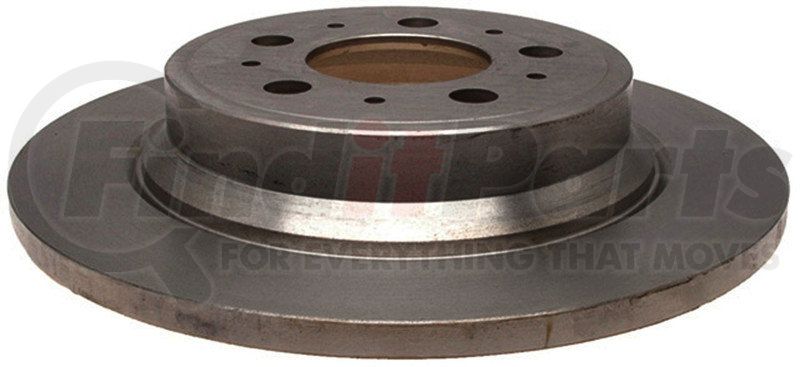

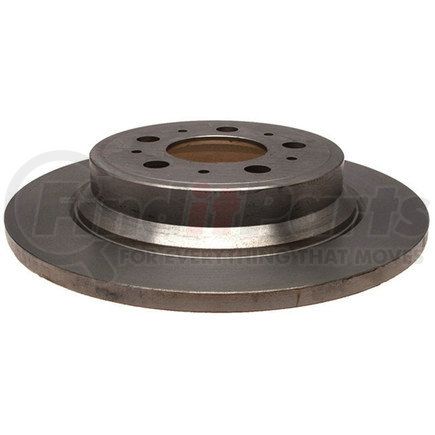

ACDELCO 18A1603 Part Description
Manufacturer
ACDELCO 18A1603 Specifications
Product Attributes
| Discard Thickness | 0.394 IN |
| Nominal Thickness | 0.472 IN |
| Height (in) | 2.551 in |
| Bolt Circle Diameter (in) | 4.25 in |
| Bolt Hole Quantity | 5 |
| Lug Quantity | 5 |
| Center Hole Diameter | 68.05 MM |
| Outside Diameter | 11.339 IN |
| Height (mm) | 64.795 mm |
| Bolt Circle Diameter (mm) | 107.95 mm |
| Material | Cast Iron |
| Discard Thickness | 10 MM |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Brake pedal pulsation (not to be confused with normal ABS operation). |
| Signs of Wear & Troubleshooting - Section 1 - Header | Brake rotor signs of wear include: |
| Good Maintenance Practices - Section 1 - Bullet 2 | Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required. |
| Good Maintenance Practices - Section 1 - Bullet 1 | Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations. |
| Good Maintenance Practices - Section 1 - Bullet 4 | Check the thickness of your brake pads. |
| Construction | Composite |
| FAQ - Question 1 | Does ACDelco offer other grades of brake rotors? |
| Good Maintenance Practices - Section 1 - Bullet 3 | Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary). |
| Good Maintenance Practices - Section 2 - Bullet 2 | Inspection of brake lining and pads for wear or contamination by brake fluid or grease. |
| Good Maintenance Practices - Section 2 - Bullet 1 | Inspection of the brake hoses for brittleness or cracking. |
| Good Maintenance Practices - Section 2 - Bullet 3 | Inspection of wheel bearings and grease seals. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Low brake pedal height. |
| Features & Benefits - Bullet 3 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Programming Required | No |
| Rust Resistant Coating | No |
| Slotted | No |
| Good Maintenance Practices - Section 2 - Bullet 4 | Parking brake adjustments (as needed). |
| Features & Benefits - Bullet 2 | Premium aftermarket replacement part |
| Grade Type | Regular |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Features & Benefits - Bullet 1 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Squealing or grinding noises. |
| Good Maintenance Practices - Section 1 - Header | The following inspections and maintenance procedures can help prevent potential brake problems: |
| Good Maintenance Practices - Section 2 - Header | The following should be conducted by a qualified technician: |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Vehicle pulls to the left or right when brakes are applied. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Visible ridges or deep grooves on the rotor surface. |
| Original Equipment Replacement | Yes |
| FAQ - Answer 1 | Yes, ACDelco also offers GM OE brake rotor and Advantage brake rotors. |
| Product Description | ACDelco Gold (Professional) Non-Coated Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Center Hole Diameter | 2.68 IN |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 12 MM |
| Outside Diameter | 288 MM |
| Overall Height | 2.551 IN |
| Overall Height | 64.8 MM |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 24 Month / Unlimited Mile Limited Warranty (Parts Only). Please see ACDelco.com for more details.|"24 Months/40,000 KM (Parts Only). Please see ACDelcocanada.com for more details." |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Warranty Special UOM | TX |
| UPC | 00707773318027 |
ACDELCO 18A1603 Cross References
ACDELCO 18A1603 Fits Vehicles
- Volvo XC70 (2003-2007)
- Volvo S80 (1999-2006)
- Volvo V70 (2001-2007)
- Volvo S60 (2001-2009)
