(888) 312-8812 Login SignupRAYBESTOS 980940FZN Raybestos Element3 Coated Brake Rotor
$9899
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
RAYBESTOS 980940FZN Part Description
Manufacturer
Product Description

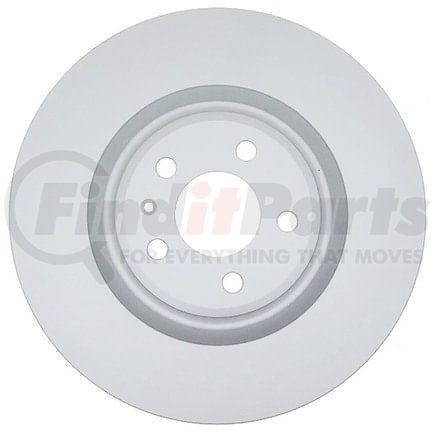

Raybestos Element3 Coated Brake Rotor
Application Summary
2017-2013 Audi Q5 Front, 2020-2017 Porsche Macan Front, 2015-2012 Audi A6 Quattro Front, 2016-2011 Audi S4 Front, 2015-2012 Audi A7 Quattro Front, 2017-2012 Audi S5 Front, 2015-2012 Audi A6 Front, 2012 Audi A5 Quattro Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980940FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.268 IN |
| Inside Diameter | 210 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.9 MM |
| Outside Diameter | 13.575 IN |
| Outside Diameter | 344.8 MM |
| Overall Height | 2.055 IN |
| Overall Height | 52.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213288322 |
RAYBESTOS 980940FZN Cross References
RAYBESTOS 980940FZN Fits Vehicles
- Porsche Macan (2015-2025)
- Audi Q5 (2013-2017)
- Audi A4 Quattro (2013)
- Audi A6 (2012-2018)
- Audi A5 Quattro (2012-2013)
- Audi S5 (2012-2017)
- Audi A6 Quattro (2012-2019)
- Audi A5 (2012-2013, 2016)
- Audi A7 Quattro (2012-2018)
- Audi S4 (2011-2016)
