RAYBESTOS 980885R Part Description
Manufacturer
Product Description

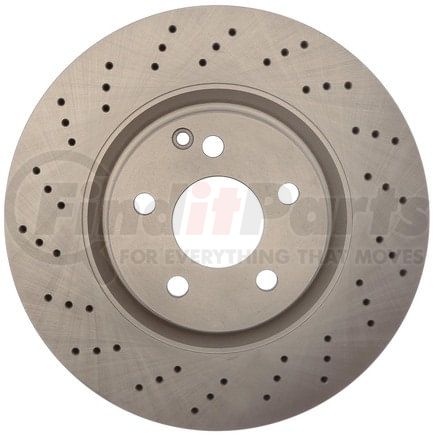

Raybestos R-Line Brake Rotor
Application Summary
2011-2007 Mercedes-Benz S550 Front, 2013-2010 Mercedes-Benz S400 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980885R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.31 IN |
| Inside Diameter | 211.05 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.19 IN |
| Outside Diameter | 335.05 MM |
| Overall Height | 2.54 IN |
| Overall Height | 64.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286793 |
RAYBESTOS 980885R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000454589ZIC |
| AUTOZONE | 76602, 76602DG |
| Advance Auto Parts | YH287477 |
| BENDIX | BPR6271 |
| BOSCH | 36010996 |
| BRAKEBEST | 36010996, 980885, 980885RGS |
| Brembo | 09.A732.11 |
| CENTRIC | 121.35099, 128.35099, 228.35099, 320.35099, 320.35099F |
| Centric Parts | 121.35099, 128.35099, 228.35099, 320.35099, 320.35099F |
| DURA CORP | BR34476, BR901226 |
| DuraGo | BR901226 |
| MAGMA PRODUCTS | PMR383067 |
| MERCEDES-BENZ | 2214210612, 2214211012, 2214211712, 221421171207 |
| NEWTEK AUTOMOTIVE | R1226 |
| Newtek Automotive USA | R1226 |
| POWERSTOP | EBR869EVC |
| Qualis | 45487 |
| TRW | 6077 |
| WAGNER BRAKE | BD180150 |
| WORLDPAC | 1407-425063, 1427-530067 |
| Wagner Brake | BD180147E, BD180150E |
| Winhere | 6621178DR |
RAYBESTOS 980885R Fits Vehicles
- Mercedes-Benz S400 (2010-2013)
- Mercedes-Benz S550 (2007-2011)
