(888) 312-8812 Login SignupRAYBESTOS 980878R Raybestos R-Line Brake Rotor
$10249
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
RAYBESTOS 980878R Part Description
Manufacturer
Product Description

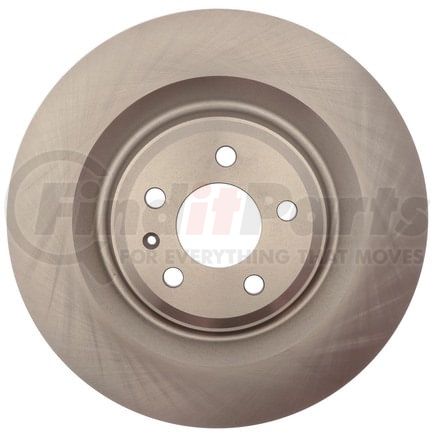

Raybestos R-Line Brake Rotor
Application Summary
2018-2011 Audi A8 Quattro Rear, 2018-2013 Audi S6 Rear, 2018-2013 Audi S7 Rear, 2018-2013 Audi S8 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980878R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.591 IN |
| Inside Diameter | 243.6 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.862 IN |
| Nominal Thickness | 21.9 MM |
| Outside Diameter | 14.004 IN |
| Outside Diameter | 355.7 MM |
| Overall Height | 1.421 IN |
| Overall Height | 36.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286779 |
RAYBESTOS 980878R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000407720ZIC |
| AUDI | 4H0615601F, 4H0615601L |
| Advance Auto Parts | YH324744 |
| AutoZone | 78014 |
| BOSCH | 14011495 |
| BRAKEBEST | 14011495, 980878, 980878RGS |
| Brembo | 09.C170.11, 09.C170.1S, 09.C170.1X |
| CENTRIC | 121.33133, 125.33133, 126.33133SL, 126.33133SR |
| Centric Parts | 121.33133, 125.33133, 126.33133SL, 126.33133SR |
| DURA CORP | BR34472 |
| DuraGo | BR34472 |
| Dynamic Friction Company | 604-73063 |
| Qualis | 45602 |
| WORLDPAC | 1427-530073 |
| Winhere | 6621380 |
| Zimmermann | 100.3362.20 |
RAYBESTOS 980878R Fits Vehicles
- Audi A7 Sportback (2020-2023)
- Audi A7 (2016-2017)
- Audi A7 Quattro (2016-2018)
- Audi S4 (2015-2016, 2018-2023)
- Audi S6 (2013-2018)
- Audi S8 (2013-2018)
- Audi S7 (2013-2018)
- Audi A8 Quattro (2011-2018)
