(888) 312-8812 Login SignupRAYBESTOS 580838 Raybestos Specialty - Street Performance Coated Brake Rotor
$11999
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
RAYBESTOS 580838 Part Description
Manufacturer
Product Description

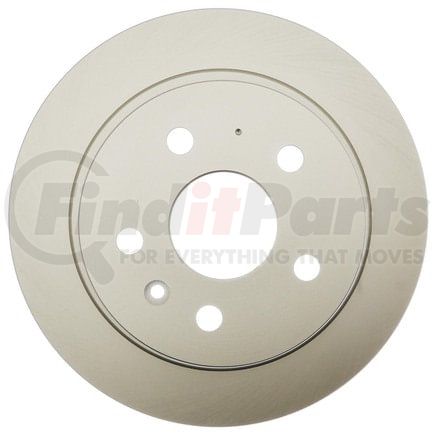

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2015-2013 Chevrolet Malibu Rear, 2016-2012 Buick LaCrosse Rear, 2017-2011 Buick Regal Rear, 2016 Chevrolet Malibu Limited Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580838 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.65 IN |
| Center Hole Diameter | 67.3 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.201 IN |
| Inside Diameter | 208.3 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.5 IN |
| Outside Diameter | 292.1 MM |
| Overall Height | 1.89 IN |
| Overall Height | 48 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213299571 |
RAYBESTOS 580838 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317661, YH317661C, YH317661P |
| AUTOPARTSOURCE | 493138 |
| AUTOXTRA | AX900916 |
| AUTOZONE | 72013, 72013DG |
| BENDIX | PRT6034, PRT6073 |
| BOSCH | 25011440 |
| BRAKEBEST | 25011440, 580838R, 580838RGS |
| CENTRIC | 120.62115, 121.62115, 126.62115SL, 126.62115SR, 127.62115L, 127.62115R, 128.62115L, 128.62115R, 320.62115 |
| Centric Parts | 120.62115, 121.62115, 126.62115SL, 126.62115SR, 127.62115L, 127.62115R, 128.62115L, 128.62115R, 320.62115 |
| DURA CORP | BR900916, BR90091602 |
| DuraGo | BR900916, BR90091602 |
| GM | 13501289, 13501313, 23118537 |
| General Motors | 13501289, 13501313, 23118537 |
| MAGMA PRODUCTS | PSR223135 |
| NAPA BRAKES | SDK6150 |
| NEWTEK AUTOMOTIVE | 55183 |
| Newtek Automotive USA | 55183 |
| OPEL | 13501302 |
| Omnicraft | QBRR19 |
| PROMAX | 14-55183 |
| PRONTO | BR900916 |
| PowerStop | AR82139 |
| Qualis | 41266 |
| TopNotch | TN580838GEO |
| UAP | R62110 |
| WAGNER BRAKE | BD180438, SB580838 |
| WINHERE | 661841 |
| WORLDPAC | 1407-317661, 1427-712950 |
| Wagner Brake | BD180438E |
RAYBESTOS 580838 Fits Vehicles
- Saab 9-5 (2011)
- Chevrolet Malibu Limited (2016)
- Chevrolet Malibu (2013-2016)
- Buick LaCrosse (2012-2016)
- Buick Regal (2011-2017)
