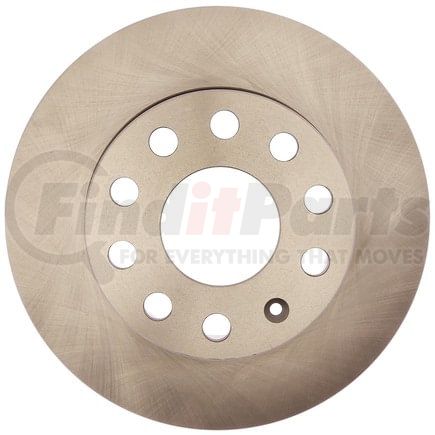

(888) 312-8812 Login SignupRAYBESTOS 980792R Raybestos R-Line Brake Rotor
MSRP: $35.98
$3299
Save $2.99
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS 980792R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2009 Volkswagen Jetta Rear, 2009,2007-2006 Volkswagen Rabbit Rear, 2011-2010 Volkswagen Golf Rear, 2013-2009 Audi A3 Rear, 2013-2009 Audi A3 Quattro Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980792R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.314 IN |
| Inside Diameter | 160.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.468 IN |
| Nominal Thickness | 11.9 MM |
| Outside Diameter | 10.075 IN |
| Outside Diameter | 255.9 MM |
| Overall Height | 1.908 IN |
| Overall Height | 48.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286731 |
RAYBESTOS 980792R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 083-2995, N1000399296ZIC |
| AUTOZONE | 70002DG |
| BENDIX | PRT6058, PRT6168 |
| BRAKEBEST | 980792, 980792FZN, 980792R, 980792RGS |
| CENTRIC | 121.33105 |
| Centric Parts | 120.33105 |
| DURA CORP | BR34427 |
| DuraGo | 900416, BR900416, BR90041602 |
| MAGMA PRODUCTS | PMR583074 |
| NEWTEK AUTOMOTIVE | 34427 |
| Newtek Automotive USA | 34427 |
| PAGID | 355122622 |
| PAGID Racing | 355122622 |
| PROMAX | 14-34427 |
| Qualis | 34427, 45113, 45498 |
| UAP | 34427 |
| VOLKSWAGEN | 1K0615601AC, 1KD615601B |
| WINHERE | 661914 |
| Wagner Brake | BD180724E |
RAYBESTOS 980792R Fits Vehicles
- Audi A3 Quattro (2009-2013)
- Volkswagen Golf (2010-2011)
- Audi A3 (2009-2013)
- Volkswagen Jetta (2008-2009)
- Volkswagen Rabbit (2006-2007, 2009)
