(888) 312-8812 Login SignupRAYBESTOS 580717FZN Raybestos Element3 Coated Brake Rotor
$7299
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Mar 17

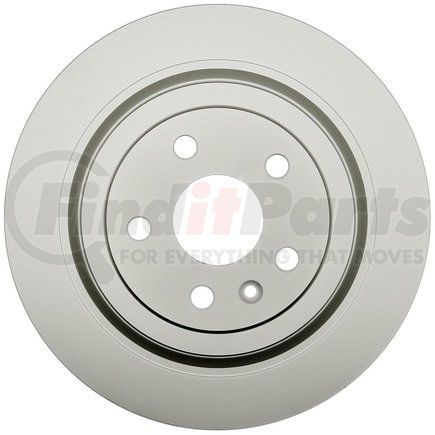

RAYBESTOS 580717FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2014-2008 Cadillac CTS Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 580717FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.655 IN |
| Center Hole Diameter | 67.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.847 IN |
| Discard Thickness | 21.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.895 IN |
| Inside Diameter | 251.35 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.642 IN |
| Mounting Bolt Hole Diameter | 16.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.908 IN |
| Nominal Thickness | 23.05 MM |
| Outside Diameter | 13.342 IN |
| Outside Diameter | 338.9 MM |
| Overall Height | 1.892 IN |
| Overall Height | 48.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213288070 |
RAYBESTOS 580717FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 200475, YH200475 |
| ADVICS | L6R352U |
| AUTOXTRA | AX900510 |
| AUTOZONE | 57108DG |
| AutoZone | 57108 |
| BENDIX | PRT5837 |
| BOSCH | 25011431 |
| BRAKEBEST | 25011431, 580717 |
| BrakeBest | 580717RGS |
| Brembo | 09.D270.11 |
| CENTRIC | 120.62107, 121.62107, 126.62107SL, 126.62107SR, 127.62107CL, 127.62107CR, 127.62107L, 127.62107R, 128.62107L, 128.62107R, 320.62107 |
| Centric Parts | 120.62107, 121.62107, 126.62107SL, 126.62107SR, 127.62107CL, 127.62107CR, 127.62107L, 127.62107R, 128.62107L, 128.62107R, 320.62107 |
| DURA CORP | BR55166, BR900510 |
| DuraGo | 900510, BR900510 |
| GM | 15267108, 20808622 |
| General Motors | 15267108, 20808622 |
| N/A | 120.62105, 120.62105CRY, 121.62105, 126.62105SL, 126.62105SR, 127.62105CL, 127.62105CR, 127.62105L, 127.62105R, 128.62105CL, 128.62105CR, 128.62105L, 128.62105R, 320.62105 |
| NEWTEK AUTOMOTIVE | 55166 |
| Newtek Automotive USA | 55166 |
| POWERSTOP | AR82156EVC |
| PROMAX | 14-55166 |
| Qualis | 41238 |
| UAP | 55166 |
| WAGNER BRAKE | BD180185, BD180185E |
| WINHERE | 6621048 |
| WORLDPAC | 1407-76035 |
RAYBESTOS 580717FZN Fits Vehicles
- Cadillac CTS (2008-2014)
