(888) 312-8812 Login SignupRAYBESTOS 980609R Raybestos R-Line Brake Rotor
$6199
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
RAYBESTOS 980609R Part Description
Manufacturer
Product Description

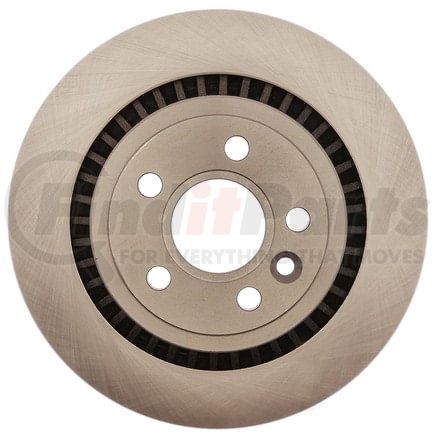

Raybestos R-Line Brake Rotor
Application Summary
2018-2015,2012-2011 Volvo S60 Rear, 2016-2008 Volvo XC70 Rear, 2016-2015,2012-2007 Volvo S80 Rear, 2018-2015 Volvo V60 Rear, 2010 Volvo V70 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980609R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.386 IN |
| Inside Diameter | 213 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.62 IN |
| Mounting Bolt Hole Diameter | 15.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 11.89 IN |
| Outside Diameter | 302 MM |
| Overall Height | 1.604 IN |
| Overall Height | 40.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286632 |
RAYBESTOS 980609R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200955 |
| AUTOXTRA | AX900856 |
| AUTOZONE | 34760, 34760DG |
| Advance Auto Parts | YH200955P |
| BENDIX | BPR6006, PRT6006 |
| BOSCH | 52011374 |
| BRAKEBEST | 52011374, 980609, 980609RGS |
| BREMBO | 09.9587.11 |
| Brembo | 09.9587.1X |
| CENTRIC | 120.39045, 121.39045, 121.39055, 125.39045, 125.39045CRY, 125.39055, 126.39045CSL, 126.39045CSR, 126.39045SL, 126.39045SR, 127.39045L, 127.39045R, 320.39045C |
| Centric Parts | 121.39045, 125.39045, 125.39045CRY, 125.39055, 126.39045CSL, 126.39045CSR, 126.39045SL, 126.39045SR, 127.39045L, 127.39045R, 320.39045C, 120.39045, 121.39055 |
| DURA CORP | BR34371, BR900856 |
| DuraGo | 900856, BR900856 |
| MAGMA PRODUCTS | PMR603034 |
| NAPA BRAKES | SDK6600 |
| NEWTEK AUTOMOTIVE | 34371 |
| Newtek Automotive USA | 34371 |
| PROMAX | 14-34371 |
| Qualis | 45461, 45936 |
| UAP | R39045 |
| VOLVO | 30769060, 307690600, 31471028, 314710280, 31341483, 313414830 |
| WAGNER BRAKE | BD180070 |
| WINHERE | 6620727 |
| WORLDPAC | 1407-75740, 1427-530129 |
| Wagner Brake | BD180746E |
RAYBESTOS 980609R Fits Vehicles
- Volvo V60 (2015-2018)
- Volvo S60 (2011-2012, 2015-2018)
- Volvo V70 (2010)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2012, 2015-2016)
RAYBESTOS 980609R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980609R Questions & Answers
No questions yet
Be the first to ask a question about this product!
