(888) 312-8812 Login SignupRAYBESTOS 980495R Raybestos R-Line Brake Rotor
$4399
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Mar 10
RAYBESTOS 980495R Part Description
Manufacturer
Product Description

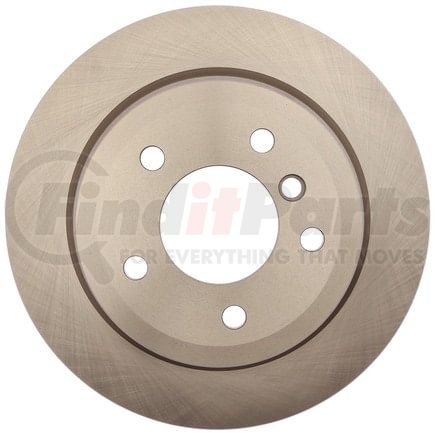

Raybestos R-Line Brake Rotor
Application Summary
2013-2007 BMW 328i Rear, 2013-2009 BMW 328i xDrive Rear, 2015-2010 BMW X1 Rear, 2008-2007 BMW 328xi Rear, 2006 BMW 325xi Rear, 2010-2006 BMW 130i Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980495R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.386 IN |
| Inside Diameter | 213 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.58 IN |
| Mounting Bolt Hole Diameter | 14.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.784 IN |
| Nominal Thickness | 19.9 MM |
| Outside Diameter | 11.803 IN |
| Outside Diameter | 299.8 MM |
| Overall Height | 2.602 IN |
| Overall Height | 66.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286571 |
RAYBESTOS 980495R Cross References
RAYBESTOS 980495R Fits Vehicles
- BMW X1 (2010-2015)
- BMW 130i (2006-2010)
- BMW 328i xDrive (2009-2013)
- BMW 328xi (2007-2008)
- BMW 328i (2007-2013)
- BMW 325xi (2006)
