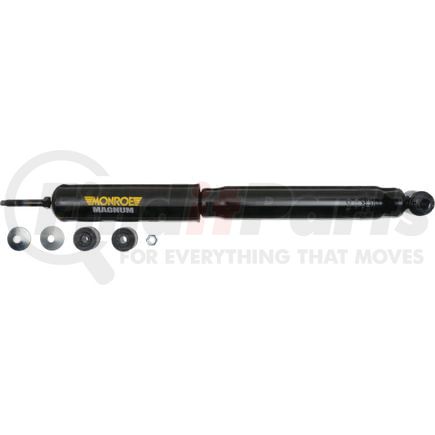

(888) 312-8812 Login SignupMONROE 550064 Magnum Light Truck Suspension Shock Absorber
Tap to view 3 more
MSRP: $115.99
$6849
Save $47.50
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
MONROE 550064 Part Description
Manufacturer
Product Description
Magnum Light Truck Suspension Shock Absorber
Features & Benefits
- Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
- PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
- Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
- Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
- Loop welding technique: Provide up to 14,100 lbs. (6,395 kg) tensile strength for maximum durability
- 2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
- 1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
- 5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability. Sintered iron design allows for more precise piston dimensions.
- .05-inch pressure tube withstanding pressure of 9KPSI - On most applications
- 10-stage valving: Reacts to wide range of driving conditions - on most applications
MONROE 550064 Specifications
Product Attributes
| Lower Mount Code | LS27 |
| Upper Mount Code | S5 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 2.251 IN |
| Compressed Length | 15.1 IN |
| Extended Length | 24.39 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16" Sleeve OAL |
| Parts Pack(s) | P01167 |
| Travel Length | 9.29 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Compressed Length | 383.5 MM |
| Extended Length | 619.5 MM |
| Travel Length | 236 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 57.2 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS27 |
| Upper Mount Code | S5 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598223654 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 550064 Cross References
| Brand | Part Number |
|---|---|
| KYB | 565133, 349054, 554367 |
| NAPA Shocks | 550064 |
| OEM | 4853009N93, 4853009N94, 4853009N96, 4853009N95, 4853009N91, 4853009N92 |
| Rancho | RS5324, RS55324 |
| Toyota | 4851009Q50, 4851009Q70, 4851009Q80, 4851009Q90, 4851009Q92, 4851009Q93, 4851009Q94, 4851009Q95, 4851009Q97, 4851009Q98, 4851009R10, 4851009R20, 4851009R30, 485108Z162, 4853009M80, 4853009M90, 4853009N10, 4853009N20, 4853009N40, 4853009N50, 4853009N91, 4853009N92, 4853009N93, 4853009N94, 4853009N95, 4853009N96 |
MONROE 550064 Fits Vehicles
- Toyota Tundra (2007-2021)
