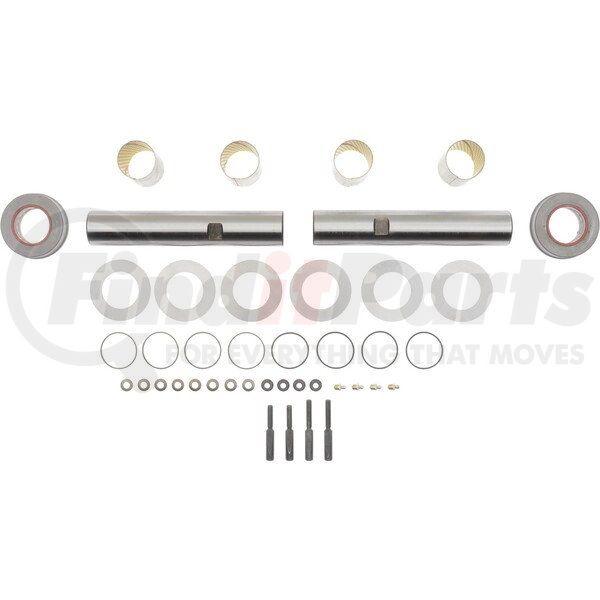

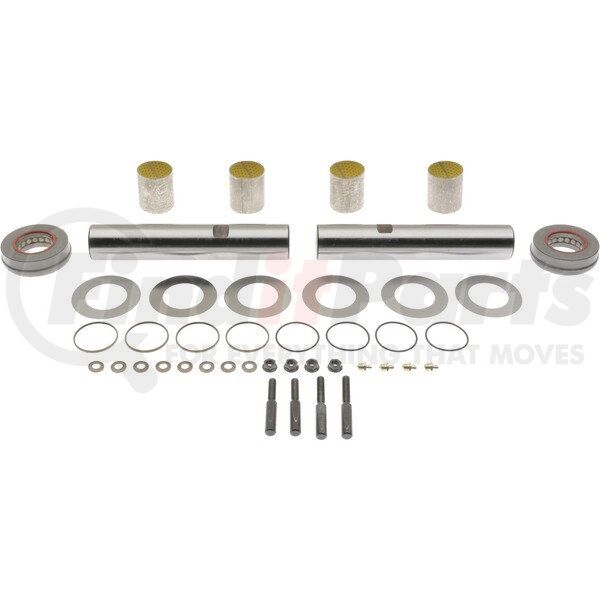

(888) 312-8812 Login SignupDANA 151KK101 KIT - KING PIN
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DANA 151KK101 Part Description
Manufacturer
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Includes everything you need for new king pin and bushing installation
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
| Brand: | Spicer |
| Model: | SPICER I 151 SERIES |
| Spicer Axle: | Y |
| Pin Number: | 819790 |
| Pin Type: | 2 |
| Length: | 10.94 |
| Diameter: | 2.05 |
| Bushing Number: | 160HD102 |
| Bushing Type: | DX Garlock |
| Bushing Nature: | Pre-Sized |
| Bushing O.D.: | 2.17 |
| Bushing Length: | 2.5 |
| Drawkey 1 Type: | H |
| Drawkey 1 Quantity: | 2 |
| Drawkey 1 Length: | 3.56 |
| Drawkey 2 Type: | H |
| Draw 2 Quantity: | 2 |
| VMRS: | 11001010 |
| Drawkey 2 Length: | 3.25 |
| Thrust Bearing: | 220HC100 |
| Thrust Bearing I.D.: | 2.07 |
| Thrust Bearing O.D.: | 3.665 |
| Thrust Bearing Height: | 1.121 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 26.04 lbs. |
| Country of Origin: | United States |
| UPC Code: | 023913184667 |
DANA 151KK101 Specifications
Product Attributes
| Length | 10.94 in |
| Bushing Length | 2.50 IN |
| Bushing Number | 160HD102 |
| Bushing O.D. | 2.17 IN |
| Bushing Type | Pre-Sized |
| Diameter | 2.05 IN |
| Drawkey 1 Length | 3.56 IN |
| Drawkey 1 Quantity | 2 |
| Drawkey 1 Type | H |
| Model | SPICER I 151 SERIES |
| Pin Number | 819790 |
| Pin Type | 2 |
| Spicer Axle | Y |
| Thrust Bearing | 220HC100 |
| Thrust Bearing Height | 1.121 IN |
| Thrust Bearing I.D. | 2.070 IN |
| Thrust Bearing O.D. | 3.665 IN |
| Draw 2 Quantity | 2 |
| Drawkey 2 Length | 3.25 IN |
| Drawkey 2 Type | H |
| Bushing Material | DX Garlock |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708509900 |
| Harmonized Tariff Code (HTS) | 8708509900 |
| UPC | 00023913184667 |
| VMRS Code | 011001010 |
DANA 151KK101 Cross References
| Brand | Part Number |
|---|---|
| Automann | 460.506C |
| Daimler Truck North America | SP 151KK101 |
| International Harvester (IHC) | H151KK101 |
| Kaiser | 50.160.19, 5016019, 70.160.19, 7016019 |
| Mack | 2719-151KK101 |
| Navistar | DS151KK101, H151KK101 |
| Volvo | SP 151KK101 |
DANA 151KK101 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 151KK101 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
