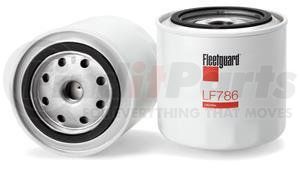

(888) 312-8812 Login SignupFLEETGUARD LF786 Engine Oil Filter - 3.85 in. Height, 3.67 in. (Largest OD), Allis-Chalmers 4083490
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FLEETGUARD LF786 Part Description
FLEETGUARD LF786 Specifications
Product Attributes
| Height | 3.85 in. (97.79 mm) |
| Micron Rating | 100 percent at 30 Microns |
| Gasket Inside Diameter | 2.46 |
| Gasket Outside Diameter | 2.83 |
| Notes | Spin-On |
| Outside Diameter (Largest) | 3.67 in. (93.22 mm) |
| Seam Outside Diameter | 3.7 |
| Standpipe | NO |
| Thread Size | 5/8-18 UNF-2B |
| Largest Od | 93.17 mm |
| Overall Height | 97.71 mm |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 3.846852471 in |
| Largest Outside Diameter | 3.6960556 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 3.846852471 in |
| Largest Outside Diameter | 3.6960556 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 3.846852471 in |
| Largest Outside Diameter | 3.6960556 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF786 Cross References
| Brand | Part Number |
|---|---|
| AC | FF6, SL |
| ALLIS-CHALMERS | 4083490, 4107775 |
| AP Lockheed | AP3147A |
| Allis Chalmers | 4083490, 4107775 |
| BALDWIN | B296 |
| Big A | 650, 651, 92320 |
| Bosch | 451202055, 8025H, 9457280250 |
| Bussing | 88061710 |
| CARQUEST | 85320 |
| CHAMP FILTERS | PB50 |
| Champ | PH226 |
| Crosland | 470, 568 |
| Cyclone | PM317 |
| Diamond | FD11 |
| Donaldson | P550196, P779185 |
| FRAM | P17, P2810, P967, PB50 |
| Filca | FL283US |
| Ford | A700X6714TA, A720X6714KA, A760X6714FA, A780X6714FA, A800X6714MA |
| GMC | 6435460 |
| Harmo | S835 |
| Hastings | 198, LF198, P197 |
| Hengst | H10WN |
| Kralinator | L30, L36, L69 |
| LUBER-FINER | PH226 |
| Mann-Filter | WP931, WP9361 |
| Massey Ferguson | 2868508M1 |
| Mopar | L27 |
| Motorcraft | EFL116, EFL47D, EFL61, EFL82, FL278 |
| N/A | 0986AF1100, B254, LFP22711, 3I1621, 1752522, 1200698, 74083490, 6435460, 1498029, 11322400890, 1069954M92, 180320, 7000014641, Z705, S1500R |
| NAPA | 1320 |
| Perry | PL178 |
| Purolator | L20024, LI3615, PER24 |
| Renault | 8548078, 8548620 |
| Savara | 92802517, 92808017 |
| Sunoco | O7 |
| Tecnocar | R52, R59 |
| WIX FILTERS | WIX FILTERS, 51320 |
| Wix | 51320 |
FLEETGUARD LF786 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF786 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
