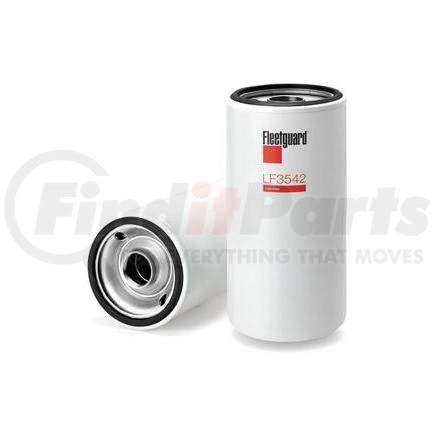

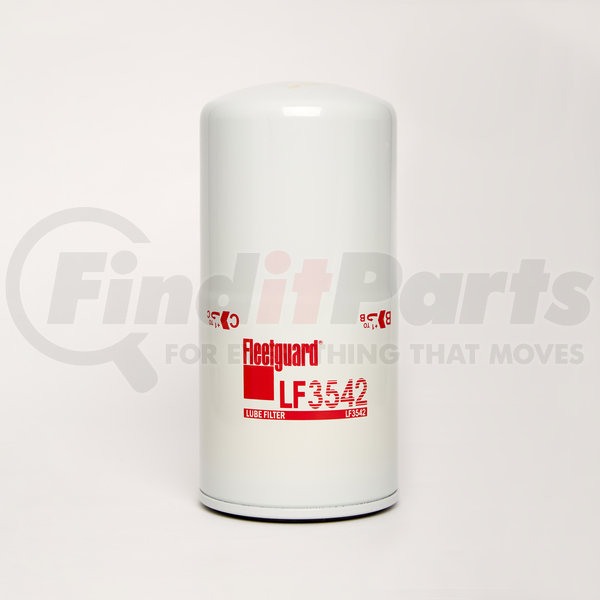

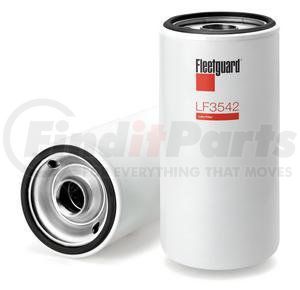

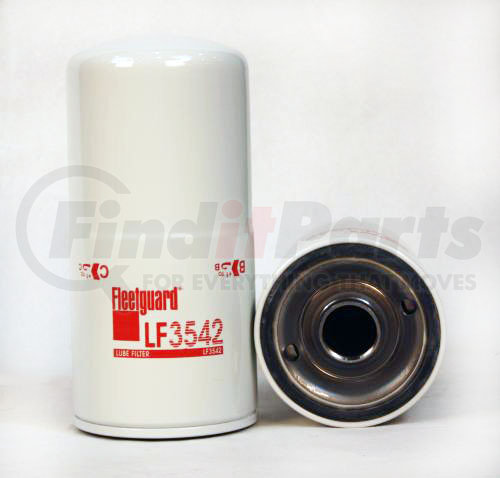

(888) 312-8812 Login SignupFLEETGUARD LF3542 Engine Oil Filter - 9.81 in. Height, 4.57 in. (Largest OD), Spin-On, Hino 156071760
Tap to view 2 more
$4899
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
FLEETGUARD LF3542 Part Description
FLEETGUARD LF3542 Specifications
Product Attributes
| Height | 9.81 in. (249.17 mm) |
| Micron Rating | 100 percent at 30 Microns |
| Gasket Inside Diameter | 3.86 in. (98.04 mm) |
| Gasket Outside Diameter | 4.36 in. (110.74 mm) |
| Notes | Spin-On |
| Outside Diameter (Largest) | 4.57 in. (116.08 mm) |
| Seam Outside Diameter | 4.74 in. (120.4 mm) |
| Standpipe | NO |
| Thread Size | 1 3/8-16 UNS-2B |
| Largest Od | 4.57 in |
| Overall Height | 9.81 in |
| Gasket Inside Diameter | 3.8929056 IN |
| Gasket Inside Diameter | 3.8929056 IN |
| Gasket Outside Diameter | 4.4047156 IN |
| Gasket Inside Diameter | 3.8929056 IN |
| Height | 9.809847817 in |
| Gasket Outside Diameter | 4.4047156 IN |
| Gasket Outside Diameter | 4.4047156 IN |
| Largest Outside Diameter | 4.7350299 IN |
| Height | 9.809847817 in |
| Height | 9.809847817 in |
| Largest Outside Diameter | 4.7350299 IN |
| Largest Outside Diameter | 4.7350299 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| UPC | 00638217085000 |
FLEETGUARD LF3542 Cross References
| Brand | Part Number |
|---|---|
| FGLF3542, F6DZ5425713B | |
| BALDWIN | B7577 |
| Case | 288870A1, 288881A1, 288922A1, 289181A1, 87418218 |
| Case IH | 84160428 |
| FRAM | P3555PL, P3555A |
| HINO | 156071760 |
| Hino | 156071420, 156071421, 156071790, 156072040 |
| Isuzu | 1132401310, 1132401583, 1132401632, 132401632, 1873100930, 1873101320, 1878116390, 1878116392, 2906548300 |
| JC Bamford | 1132401310, 2800003, 2800227, 2800960, 32919502, 32925322 |
| John Deere | 4283860, AT280318 |
| Komatsu | L3542PP |
| LUBER-FINER | LFP777B |
| Mann-Filter | W12250 |
| N/A | 4283860, 84160428, 288870A1, T6739B, 1132401310 |
| New Holland Agriculture | 86987694 |
| PUROLATOR | L50250 |
| VIC | C511 |
| WIX FILTERS | WIX FILTERS, 51749 |
FLEETGUARD LF3542 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF3542 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
