(888) 312-8812 Login SignupDELPHI TA3216 Tie Rod End
Tap to view 2 more
$4999
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5

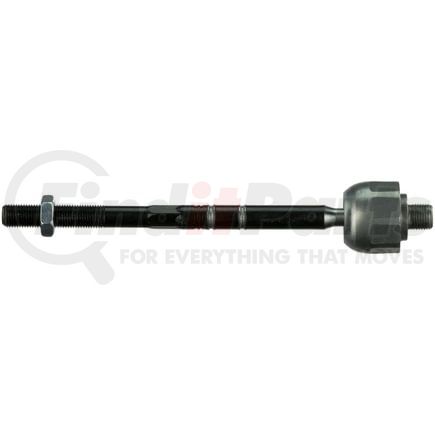

DELPHI TA3216 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA3216 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 42.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 42.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.571 IN |
| Tube Diameter | 14.50 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.23 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.465 IN |
| Length - Stud Center to End | 215.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16.00 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Grade | Premium |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604299814 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA3216 Cross References
| Brand | Part Number |
|---|---|
| MEVOTECH | MS10786 |
| MEYLE | 016 031 0023 |
| MOOG | EV801429 |
| Mercedes-Benz | 212 330 28 03, A 212 330 28 03 |
| N/A | 1018088, MS10786 |
| VAICO | V303191 |
DELPHI TA3216 Fits Vehicles
- Mercedes-Benz S450 (2018-2020)
- Mercedes-Benz S560 (2018-2020)
- Mercedes-Benz Maybach S560 (2018-2019)
- Mercedes-Benz Maybach S550 (2017)
- Mercedes-Benz CLS400 (2015-2017)
- Mercedes-Benz E400 (2015-2018)
- Mercedes-Benz S550 (2014-2017)
- Mercedes-Benz S63 AMG (2014-2020)
- Mercedes-Benz CLS63 AMG S (2014-2018)
- Mercedes-Benz E63 AMG S (2014-2016)
- Mercedes-Benz E250 (2014-2016)
- Mercedes-Benz GLK250 (2013-2015)
- Mercedes-Benz E300 (2012-2016)
- Mercedes-Benz GLK350 (2013-2015)
- Mercedes-Benz E63 AMG (2012-2015)
- Mercedes-Benz CLS63 AMG (2012-2014)
- Mercedes-Benz CLS550 (2012-2018)
- Mercedes-Benz E350 (2010-2016)
- Mercedes-Benz E550 (2010-2016)
