DELPHI TC5398 Part Description
Manufacturer
Product Description

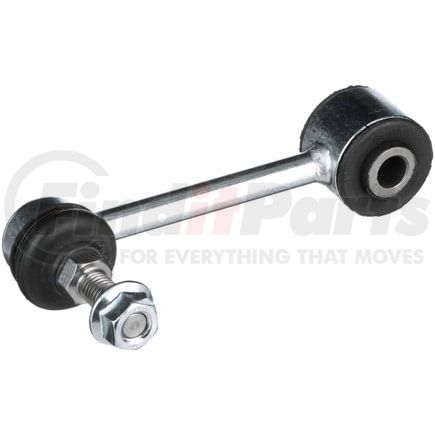

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5398 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Steel |
| Bushing Color | Black |
| Length | 5.098 IN |
| End 1 Type | Bushing |
| End 2 Type | Ball Joint |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Bolt Thread Size | M12x1.25 |
| Width | 1.575 IN |
| Width | 40 MM |
| Washers Included | No |
| Height | 3.937 IN |
| Height | 100.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 12.00 MM |
| Weight | 0.23 lb |
| Bushing Material | Rubber |
| Wrench Size | 17mm |
| Bolt Length | 31.00 MM |
| Bolt Thread Diameter | 0.470 IN |
| Bolt Thread Diameter | 12.00 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 12.50 MM |
| Bushing Inside Diameter | 0.492 IN |
| Length | 129.49 MM |
| Bolt Head Diameter | 0.470 IN |
| Bolt Length | 1.220 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604289617 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5398 Cross References
DELPHI TC5398 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
