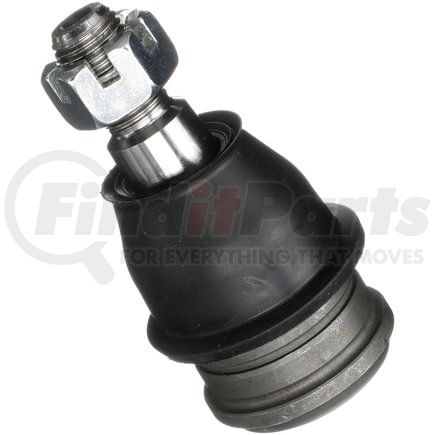

DELPHI TC5274 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5274 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 63.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.996 IN |
| Height | 101.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Stud Thread Length | 1.102 IN |
| Stud Thread Length | 28 MM |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.846 IN |
| Stud Tapered End 2 Diameter | 21.5 MM |
| Stud Tapered End 1 Diameter | 0.709 IN |
| Stud Tapered End 1 Diameter | 18 MM |
| Stud Thread Pitch | 2 MM |
| Stud Thread Diameter | 0.63 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288368 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5274 Cross References
DELPHI TC5274 Fits Vehicles
- Honda Insight (2010-2011)
- Honda Fit (2009-2013)
