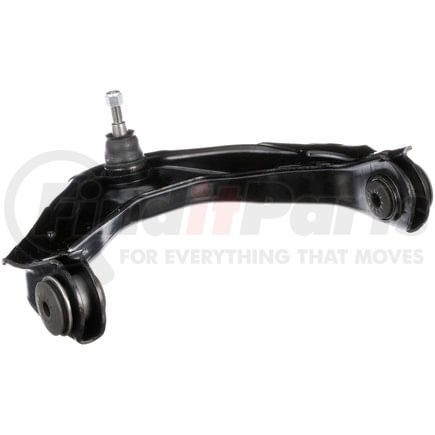

(888) 312-8812 Login SignupDELPHI TC5155 Control Arm and Ball Joint Assembly
Tap to view 20 more
$9749
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC5155 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5155 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 8.819 IN |
| Control Arm Maximum Width | 224.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 3.346 IN |
| Ball Joint Stud Length | 85.00 MM |
| Control Arm Maximum Length | 16.732 IN |
| Control Arm Maximum Length | 425.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604289853 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5155 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB90270, CB90270PR |
| Dorman | 520-150 |
| General Motors | 15224737, 25905442 |
| MAS Industries | CB90270, CB90270PR |
| MEVOTECH | CMS20360, CTXMS20360 |
| MOOG | CK620054 |
| MOOG Chassis Products | CK620053, CK620054, K6696, RK620054 |
| N/A | 15110013, 15049881, GS20360, CTXMS20360, CMS20360, CB91250, CB91250PR, 526-997, 623.66065, CMS501230, CMS501237, RK621783 |
| TRW | JTC1512 |
DELPHI TC5155 Fits Vehicles
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- Hummer H2 (2003-2009)
- GMC Yukon XL 2500 (2000-2012)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2010)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- Chevrolet Suburban 2500 (2000-2012)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2010)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Avalanche 2500 (2002-2006)
