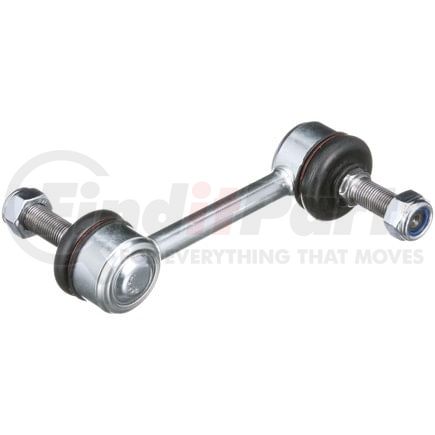

(888) 312-8812 Login SignupDELPHI TC5058 Suspension Stabilizer Bar Link
Tap to view 5 more
$2399
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
DELPHI TC5058 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5058 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Steel |
| Bushing Color | Black |
| Length | 4.567 IN |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | M12 |
| Width | 1.575 IN |
| Width | 40 MM |
| Washers Included | No |
| Height | 4.646 IN |
| Height | 118.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 12.00 MM |
| Bolt Length | 31.50 MM |
| Bolt Thread Diameter | 12.00 MM |
| Bolt Thread Diameter | 0.470 IN |
| Locking Nuts Included | Yes |
| Length | 116.00 MM |
| Bolt Head Diameter | 0.470 IN |
| Bolt Length | 1.240 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604286593 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5058 Cross References
DELPHI TC5058 Fits Vehicles
- Ford Edge (2007-2014)
- Lincoln MKX (2007-2015)
