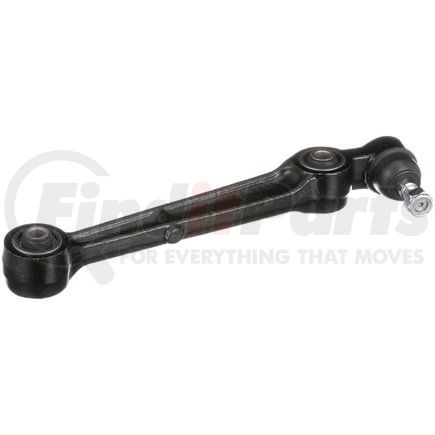

(888) 312-8812 Login SignupDELPHI TC1580 Control Arm and Ball Joint Assembly
Tap to view 5 more
$4199
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 4
DELPHI TC1580 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1580 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.330 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 2.638 IN |
| Ball Joint Stud Length | 67.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Control Arm Maximum Width | 109.98 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604288672 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1580 Cross References
DELPHI TC1580 Fits Vehicles
- Mitsubishi Eclipse (1995-1999)
- Mitsubishi Galant (1994-1999)
- Eagle Talon (1995-1998)
- Dodge Avenger (1995-2000)
- Chrysler Sebring (1995-2000)
