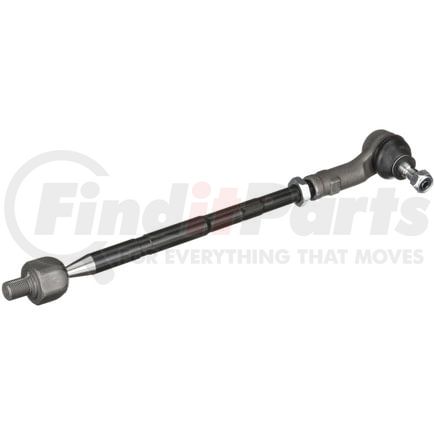

(888) 312-8812 Login SignupDELPHI TA5109 Tie Rod End Assembly
Tap to view 8 more
$9199
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Mar 25
DELPHI TA5109 Part Description
Manufacturer
Product Description
Tie Rod End Assembly
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5109 Specifications
Product Attributes
| Position(s) | Left |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Cataphoresis |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.63 IN |
| End 2 Thread Diameter | 16.0 MM |
| Adjustable | Yes |
| Greaseable | No |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 15.276 IN |
| Length - Stud Center to End | 388.0 MM |
| Tie Rod Material | Carbon Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 11.99 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604286814 |
| VMRS Code | 015004024 |
| UNSPSC | 25174205 |
DELPHI TA5109 Cross References
| Brand | Part Number |
|---|---|
| Audi | 8N0422803A |
| Beck/Arnley | 101-5984 |
| DORMAN | TA12061, TA12061PR |
| MEVOTECH | MES800018A |
| MEYLE | 1160300004 |
| MOOG Chassis Products | ES800018A |
| N/A | 8N0 422 803 C, MES800018A |
| TRW | JRA107, JRA568 |
DELPHI TA5109 Fits Vehicles
- Audi TT Quattro (2000-2006)
- Audi TT (2000-2006)
