(888) 312-8812 Login SignupRANCHO RS999808 RS9000XL Montante de Suspension (Strut)
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RANCHO RS999808 Part Description
Manufacturer
Product Description

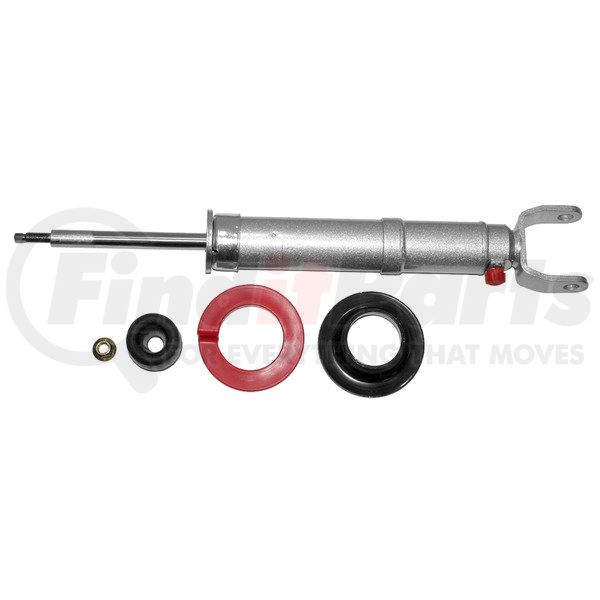

Suspension Strut
Features & Benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and sintered iron piston for enhanced structural integrity
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS999808 Specifications
Product Attributes
| Body Type | SS4 |
| Compressed Length | 14.6 IN |
| Travel Length | 7.19 in |
| Internal Construction Type | Tri Tube |
| Grade Type | Performance |
| Extended Length | 21.19 in |
| Body Length | 14.52 IN |
| Adjustable Damping | Yes |
| Dust Shield Included | No |
| Damping Adjustment Type | Manual |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Body Diameter | 2.13 |
| Finish | Painted |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | P01768 |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 370.8 MM |
| Extended Length | 538.2 MM |
| Travel Length | 182.6 MM |
| Body Length | 368.8 MM |
| Body Diameter | 2.13 IN |
| Body Diameter | 54.1 MM |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Upper Mount Type | Loop (Eyelet) Bushing |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703000963 |
| VMRS Code | 016020000 |
| UNSPSC | 25172007 |
RANCHO RS999808 Cross References
| Brand | Part Number |
|---|---|
| BILSTEIN | 24-187343, 24-317894 |
| Ram Trucks | 68040880AD, 68040880AE, 68040880AG, 68040880AH, 68040882AC |
RANCHO RS999808 Fits Vehicles
- Ram 1500 Classic (2019-2024)
- Ram 1500 (2011-2021)
- Dodge Ram 1500 (2009-2010)
