RANCHO RS999136 Part Description
Manufacturer
Product Description

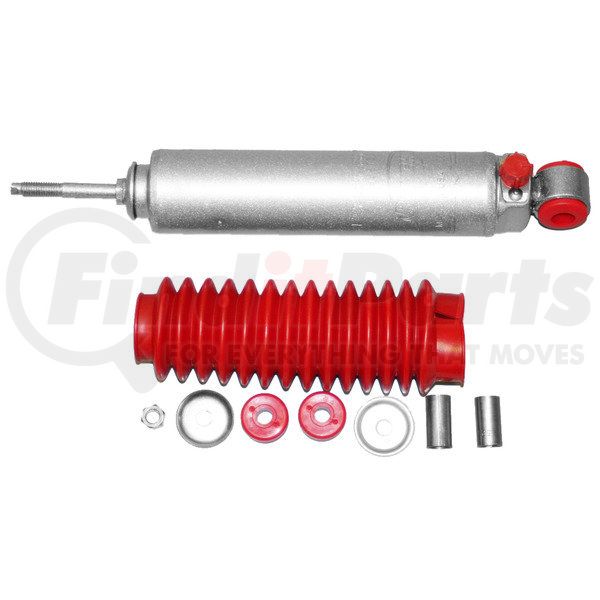

RS9000XL Suspension Shock Absorber
Features & Benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS999136 Specifications
Product Attributes
| Compressed Length | 11.53 IN |
| Travel Length | 5.31 in |
| Finish | Painted |
| Internal Construction Type | Tri Tube |
| Grade Type | Performance |
| Extended Length | 16.84 in |
| Adjustable Damping | Yes |
| Dust Shield Included | Yes |
| Damping Adjustment Type | Manual |
| Includes Bump Stop | No |
| Upper Mount Code | S4 |
| Lower Mount Code | L1 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Body Diameter | 2.18 |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | P01192,P00910 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 292.9 MM |
| Extended Length | 427.7 MM |
| Travel Length | 134.9 MM |
| Shock Stroke | 5.31 IN |
| Shock Stroke | 134.9 MM |
| Lower Mount Code | L1 |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Body Diameter | 2.18 IN |
| Body Diameter | 55.4 MM |
| Cylinder Outside Diameter | 2.18 IN |
| Cylinder Outside Diameter | 55.4 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | Silver |
| Cylinder Color | Silver |
| Color | Silver |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Diameter | 2.99 IN |
| Dust Shield Diameter | 75.9 MM |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.622 IN |
| Rod Diameter | 15.8 MM |
| Shaft Material | Nitro-Carburized Steel |
| Shock Absorber Bore Size | 1.26 IN |
| Shock Absorber Bore Size | 32 MM |
| Internal Rebound Spring | No |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | Yes |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Upper Mount Type | Stem |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703091367 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
RANCHO RS999136 Cross References
| Brand | Part Number |
|---|---|
| BILSTEIN | 24-184601 |
RANCHO RS999136 Fits Vehicles
- International Scout (1961-1971)
- Ford F-100 Ranger (1996)
- Mazda B4000 (1994)
- Mazda B3000 (1994)
- Mazda Navajo (1991-1994)
- Toyota Pickup (1979-1992)
- Toyota 4Runner (1984-1985)
- Ford Ranger (1983-1995)
- Ford F-250 (1970-1979, 1987-1996)
- Ford F-150 (1975-1996)
- Ford F-100 (1970-1979, 1981-1983)
- Ford Explorer (1991-1993)
- Ford E-350 Econoline Club Wagon (1977-1991)
- Ford E-350 Econoline (1975-1991)
- Ford E-250 Econoline Club Wagon (1975-1991)
- Ford E-250 Econoline (1975-1991)
- Ford Bronco (1980-1996)
- Dodge Durango (1998-2003)
- Dodge Dakota (1997-2004)
- Daihatsu Rocky (1990)
