RANCHO RS999119 Part Description
Manufacturer
Product Description

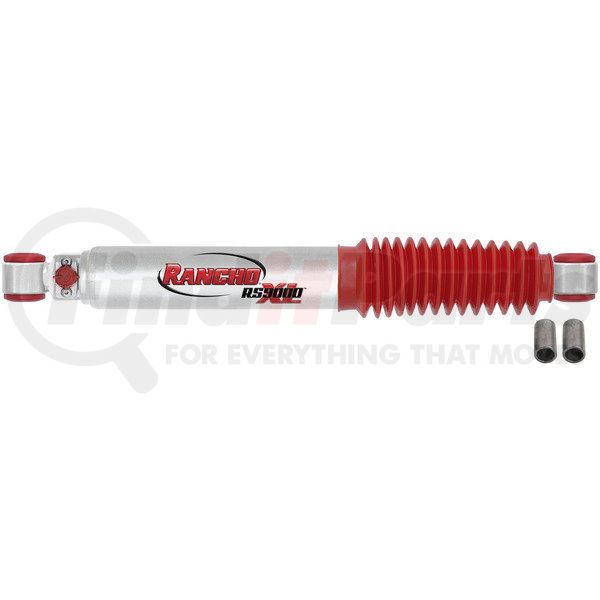

RS9000XL Suspension Shock Absorber
Features & Benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS999119 Specifications
Product Attributes
| Compressed Length | 11.93 IN |
| Travel Length | 5.4 in |
| Finish | Painted |
| Internal Construction Type | Tri Tube |
| Grade Type | Performance |
| Extended Length | 17.33 in |
| Adjustable Damping | Yes |
| Dust Shield Included | Yes |
| Damping Adjustment Type | Manual |
| Includes Bump Stop | No |
| Upper Mount Code | L1 |
| Lower Mount Code | L1 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Body Diameter | 2.38 |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | P00916 |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 303 MM |
| Extended Length | 440.2 MM |
| Travel Length | 137.2 MM |
| Shock Stroke | 5.4 IN |
| Shock Stroke | 137.2 MM |
| Lower Mount Code | L1 |
| Upper Mount Code | L1 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Body Diameter | 2.38 IN |
| Body Diameter | 60.5 MM |
| Cylinder Outside Diameter | 2.38 IN |
| Cylinder Outside Diameter | 60.5 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | Silver |
| Cylinder Color | Silver |
| Color | Silver |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Diameter | 2.99 IN |
| Dust Shield Diameter | 75.9 MM |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.709 IN |
| Rod Diameter | 18 MM |
| Shaft Material | Nitro-Carburized Steel |
| Shock Absorber Bore Size | 1.26 IN |
| Shock Absorber Bore Size | 32 MM |
| Internal Rebound Spring | No |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | Yes |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Upper Mount Type | Loop (Eyelet) Bushing |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703091190 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
RANCHO RS999119 Cross References
RANCHO RS999119 Fits Vehicles
- International Scout (1961-1971)
- AM General FJ8 (1973-1974)
- Jeep Gladiator (1962)
- Jeep Utility Wagon (1956-1962)
- Jeep Commando (1969-1973)
- Jeep CJ6A (1966-1968)
- Jeep CJ5A (1966-1968)
- Willys CJ2A (1945)
- Jeep Willys (1943-1958)
- Jeep Utility (1961-1962)
- Jeep Jeepster (1969-1971)
- Jeep DJ5 (1965-1974)
- Jeep DJ3 (1959-1965)
- Jeep CJ3 (1959-1966)
- Dodge W300 Series (1961-1967)
- Dodge W300 Pickup (1968-1969)
- Dodge D300 Series (1961-1967)
- Dodge D300 Pickup (1968-1971)
- Toyota Land Cruiser (1964-1984)
- Jeep Wagoneer (1974-1975)
- Jeep Scrambler (1981)
- Jeep CJ7 (1976-1981)
- Jeep CJ6 (1959-1975)
- Jeep CJ5 (1959-1981)
- Suzuki Samurai (1985-1995)
