(888) 312-8812 Login SignupRAYBESTOS 982125R Raybestos R-Line Brake Rotor
$8749
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
RAYBESTOS 982125R Part Description
Manufacturer
Product Description

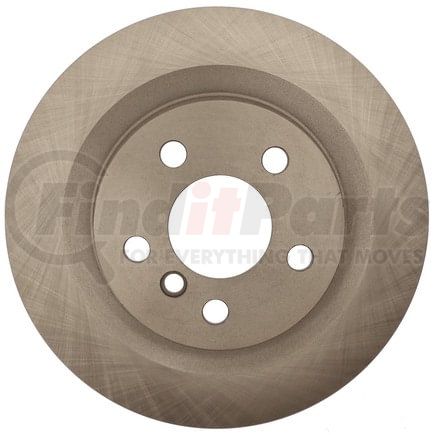

Raybestos R-Line Brake Rotor
Application Summary
2021-2016 BMW X1 Rear, 2023-2018 Mini Cooper Countryman Rear, 2023-2018 BMW X2 Rear, 2019-2017 Mini Cooper Clubman Rear, 2023-2020 BMW 228i xDrive Gran Coupe Rear, 2023-2021 BMW 228i Gran Coupe Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 982125R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.6 IN |
| Center Hole Diameter | 67.0 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.7 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.6 IN |
| Inside Diameter | 217.2 MM |
| Mounting Bolt Hole Circle Diameter | 4.4 IN |
| Mounting Bolt Hole Circle Diameter | 112.0 MM |
| Mounting Bolt Hole Diameter | 0.7 IN |
| Mounting Bolt Hole Diameter | 16.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.8 IN |
| Nominal Thickness | 20.0 MM |
| Outside Diameter | 11.8 IN |
| Outside Diameter | 299.8 MM |
| Overall Height | 2.0 IN |
| Overall Height | 50.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Material | Cast Iron |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 299.8 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 5.5 |
| Weight [cntrc] Lbs | 12.2 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213249415 |
RAYBESTOS 982125R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH583324P |
| AutoZone | 73059DL |
| BMW | 34216799369, 34206891086 |
| BrakeBest | 921704RGS |
| Brembo | 09.C743.11 |
| CENTRIC | 121.34179, 125.34179, 126.34179, 126.34179SL, 126.34179SR, 127.34179R, 127.34179L, 128.34179L, 128.34179R, 226.34179 |
| Centric Parts | 121.34179, 125.34179, 126.34179, 126.34179SL, 126.34179SR, 127.34179L, 127.34179R, 128.34179L, 128.34179R, 226.34179 |
| DURA CORP | BR901660 |
| DuraGo | BR901660 |
| Dynamic Friction Company | 604-31158 |
| MAGMA PRODUCTS | PMR125123 |
| Mini | 34206891086 |
| NEWTEK AUTOMOTIVE | R1660 |
| Newtek Automotive USA | R1660 |
| POWERSTOP | EBR1657EVC |
| Qualis | 45930, 65869 |
| TopNotch | TN982125GEO |
| WORLDPAC | 1407-583324, 1427-586442 |
| Wagner Brake | BD180768E |
| Winhere | 6621704 |
RAYBESTOS 982125R Fits Vehicles
- Mercedes-Benz CL600 (2011)
- BMW 530i xDrive (2018)
- Mini Countryman (2025)
- BMW 220i (2018-2019)
- BMW 228i Gran Coupe (2021-2024)
- BMW 228i xDrive Gran Coupe (2020-2024)
- BMW X2 (2018-2025)
- Mini Cooper Countryman (2017-2024)
- Mini Cooper Clubman (2016-2019)
- BMW X1 (2016-2022, 2024-2025)
