CENTRIC 320.8302 Part Description
Manufacturer
Product Description

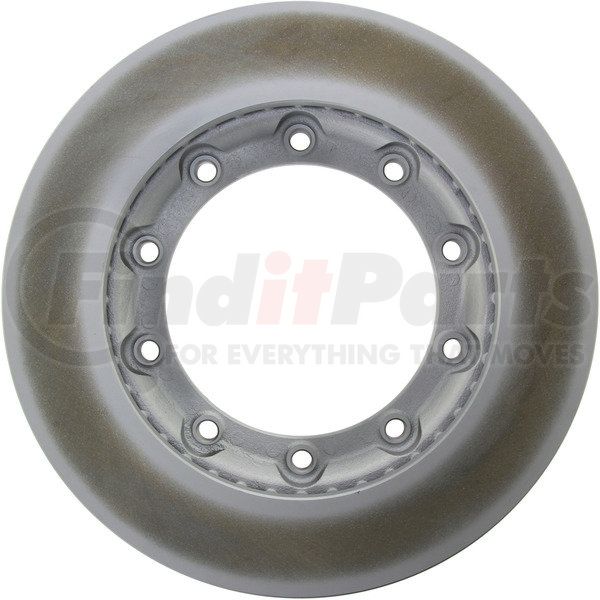

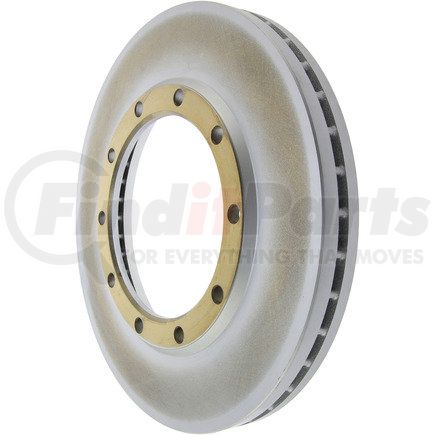

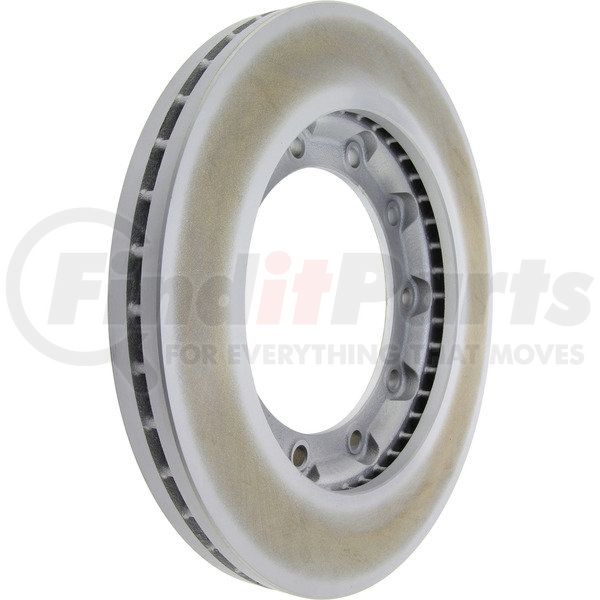

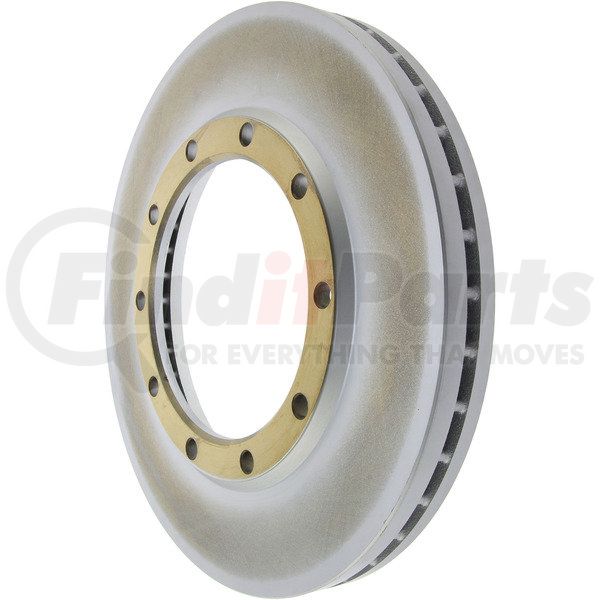

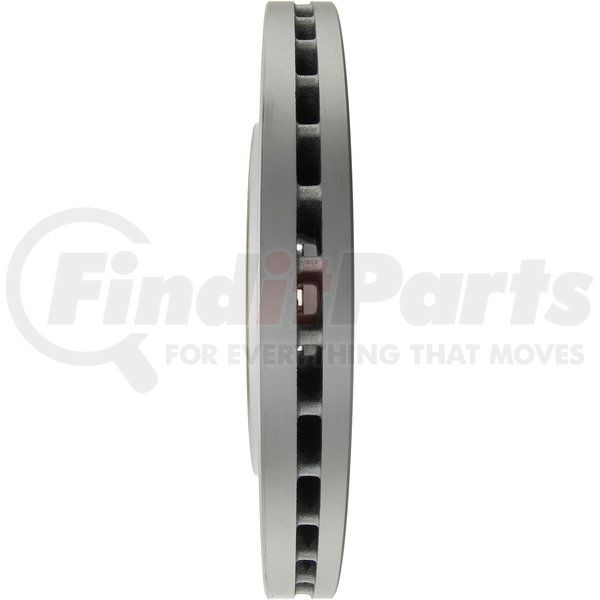

GCX Rotor with Partial Coating
Application Summary
2019 - 2019 Chevrolet Silverado 4500 HD, 2019 - 2019 Chevrolet Silverado 5500 HD, 2019 - 2019 Chevrolet Silverado 6500 HD, 2009 - 2019 Ford F650, 2009 - 2019 Ford F750, 2010 - 2012 IC Corporation BE Commercial Bus, 2010 - 2012 IC Corporation BE School Bus, 2010 - 2015 IC Corporation CE Commercial, 2010 - 2015 IC Corporation CE Integrated, 2010 - 2015 IC Corporation CE School Bus, 2010 - 2015 IC Corporation HC Integrated Commercial, 2010 - 2015 IC Corporation RE Commercial, 2010 - 2015 IC Corporation RE School Bus, 2009 - 2011 International 3200, 2009 - 2011 International 3300, 2009 - 2010 International 3900FC, 2009 - 2012 International 4100, 2009 - 2010 International 4200, 2009 - 2012 International 4300, 2009 - 2012 International 4300LP, 2009 - 2012 International 4400, 2009 - 2012 International 4400LP, 2009 - 2010 International 4600, 2009 - 2010 International 4700, 2009 - 2010 International 4800, 2009 - 2010 International 4900, 2009 - 2010 International 7100
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor
CENTRIC 320.8302 Specifications
Product Attributes
| Discard Thickness | 1.421 IN |
| Discard Thickness | 36.10 MM |
| Nominal Thickness | 1.539 IN |
| Nominal Thickness | 39.10 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Outside Diameter | 15.354 IN |
| Outside Diameter | 390.00 MM |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 7.386 IN |
| Center Hole Diameter | 187.60 MM |
| Mounting Bolt Hole Circle Diameter | 8.650 IN |
| Mounting Bolt Hole Circle Diameter | 219.70 MM |
| Mounting Bolt Hole Diameter | 0.528 IN |
| Mounting Bolt Hole Diameter | 13.40 MM |
| Disc Mounting [cntrc] | Behind the Hub |
| Hat Inside Diameter [cntrc] | 12.244 IN |
| Hat Inside Diameter [cntrc] | 311.000 MM |
| Height | 48.60 |
| Hub Hole/Whl Reg [cntrc] | 187.6 MM |
| Misc Holes [cntrc] | 10 |
| Notes [cntrc] | Hat Shaped |
| Solid / Vented | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 18.800 KG |
| Weight [cntrc] | 41.450 LB |
| Disc Mounting | Behind the Hub |
| Hat Inside Diameter | 12.244 IN |
| Hat Inside Diameter | 311.000 MM |
| Hub Hole Diameter | 187.6 MM |
| Misc Holes | 10 |
| Notes | Hat Shaped |
| Vane Style | Straight |
| Weight | 18.800 KG |
| Weight | 41.450 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590297287 |
