REACH COOLING 61-1333 Part Description
Manufacturer
Product Description
Charge Air Cooler
Application Summary
Freightliner:96-2001 FL70
Features & Benefits
- Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
- Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
- Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
- Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
- Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
- 7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
- Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.

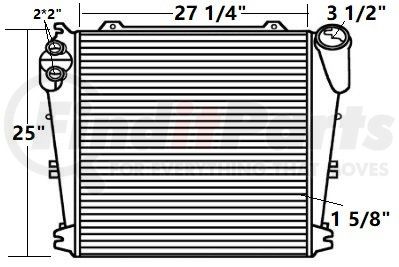

REACH COOLING 61-1333 Specifications
Product Attributes
| Outlet Outside Diameter | 3 1/2 IN |
| Outlet Location | Upper Right |
| Core Thickness | 41 MM |
| Core Material | Aluminum |
| Inlet Location | Upper Left |
| Core Length | 27 1/4 IN |
| Inlet Outside Diameter | 51 MM |
| Core Height | 25 IN |
| Core Row Quantity | 1 |
| Inlet Outside Diameter | 2 IN |
| Type | Tube and Fin |
| Core Thickness | 1 5/8 IN |
| Core Length | 692 MM |
| Outlet Outside Diameter | 89 MM |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 06941099912024 |
REACH COOLING 61-1333 Cross References
REACH COOLING 61-1333 Fits Vehicles
- Freightliner FL70 (1996-2001)
