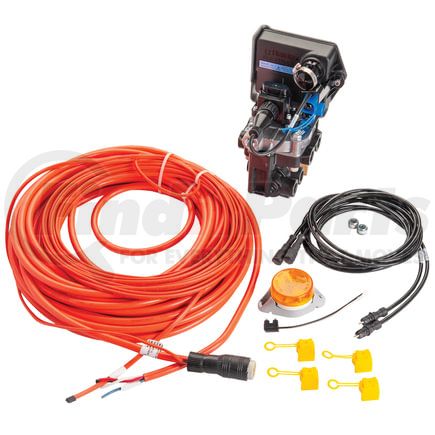

(888) 312-8812 Login SignupHALDEX AQ960802 ABS Control Module Kit - 2S/1M Full-Function ABS (FFABS) Valve Kit
MSRP: $1,404.39
$1,15249
Save $251.90
Limited availability at this price!
In Stock
Get it by Monday, Mar 23
HALDEX AQ960802 Part Description
Manufacturer
Product Description
2S/1M Kit
Application Summary
Condensed Kits do not include wheel end exciters, sensors or mounting blocks. AL301220 junction cable needed for PLC 6S/4M multiple systems. Most ABS maintenance involves Wheel-end Sensors. Haldex recommends that Wheel-end Sensors be replaced when replacing or upgrading the ABS system.,Multi Designed to be used with ABS ready axles. Complies with the March 2001 PLC4 Trucks industry. Kit includes detailed instructions for installation and maintenance.
Features & Benefits
- Has new trailer placement and PLC Select ECU design
- Patented FFABS valve with integral spring brake control function
- An FFABS valve type and reservoir mount
- Preinstalled Reservoir Nipple with swivel and locknut feature assures easy serviceability
- Designed with 3/8"-18 control port and 3/8"-18 emergency supply port
- Built in compliance with the March 2001 PLC4 Trucks industry
- Comes with detailed instructions for maintenance and installation
- Specifically designed for use with ABS ready axles and builders power cord
Haldex FFABS Installation Kit
Maintenance and servicing of your fully functional ABS has never been easier with the Haldex FFABS installation kit. Manufactured by a brand with a solid reputation in manufacturing air brake system components, this kit already includes all the hardware you need to restore your air brake system’s like-new performance.
HALDEX AQ960802 Specifications
Product Attributes
| Control Port Diameter | 3/8 in. |
| Delivery Port Diameter | 4 @ 3/8 in. |
| ECU / Valve Number | N9001BB |
| ECU Design | PLC Select |
| Freight Class | 70 |
| Notes | 20x12M Power Cord, ABS Light Kit, 2.5M Sensor Extensions |
| Reservoir Port Diameter | 1 @ 1/2 in., 1 @ 3/4 in. (Nipple) |
| Spring Brake Port Diameter | 4 @ 3/8 in. |
| Supply Port Diameter | 3/8 in. |
| Valve Number | N4306JD |
| Valve Specifications | 4-Port FFABS Valve - Spring Brake Priority |
| Valve Type | FFABS |
| Voltage | 12V |
| Control Port | .375 IN (1) with Filter |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Harmonized Tariff Code (HTS) | 8716905060 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | 36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653269436 |
| VMRS Code | 013011076 |
HALDEX AQ960802 Cross References
HALDEX AQ960802 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX AQ960802 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
